21. Fit new circlip to LH drive shaft.
22. With assistance, fit LH drive shaft to gearbox,
keep shaft square to prevent damage to oil seal
in gearbox.
23. Fit IRD.
DRIVE, REPAIRS, Intermediate reduction
drive (IRD) unit - Td4.
24. Fit starter motor.
25. Fit fluid cooler.
26. Fit intake ducting assembly.
FUEL DELIVERY SYSTEM - DIESEL,
REPAIRS, Ducting - intake assembly.
27. Connect battery earth lead.
28. Untie and close bonnet.

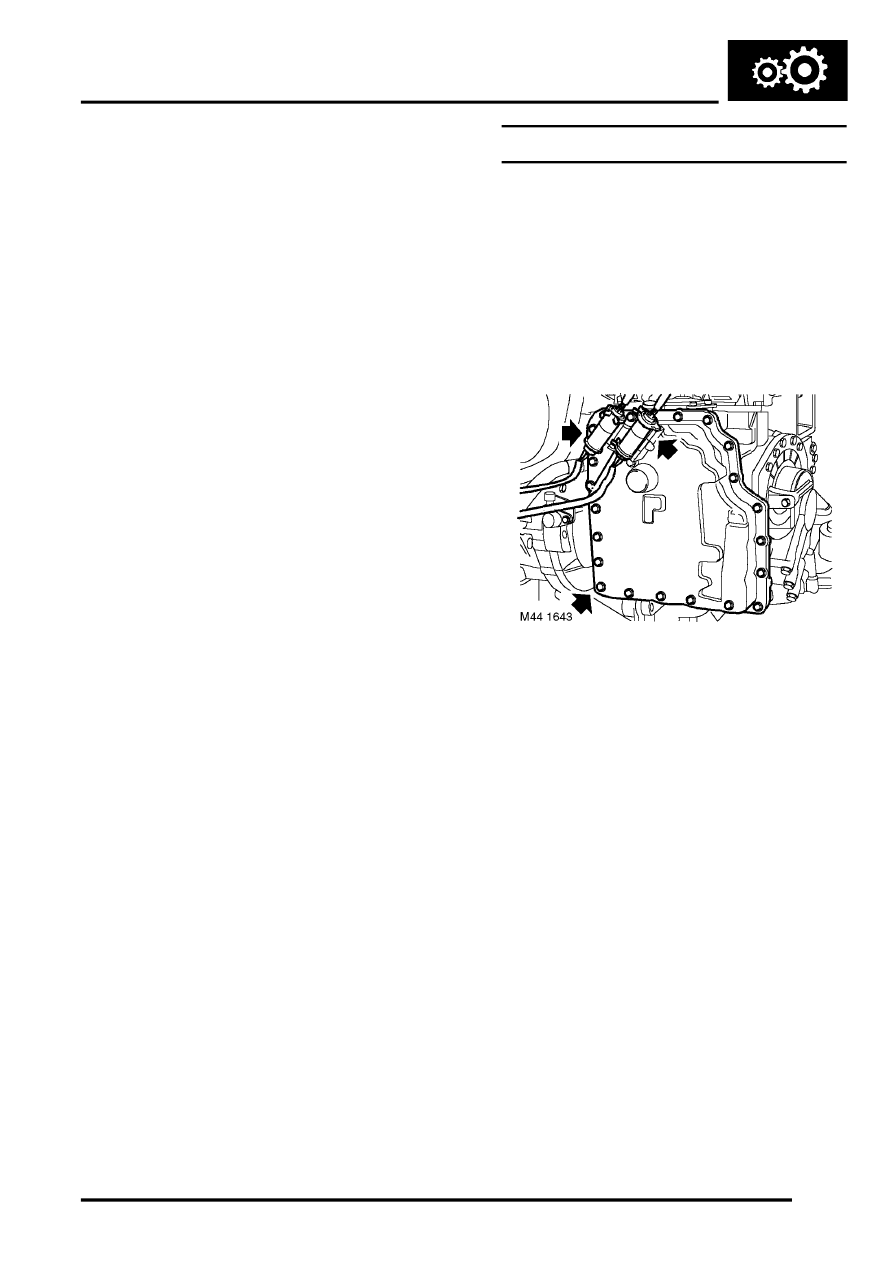

Fluid pan - reseal
$% 44.24.05
Remove
1. Drain gearbox fluid.
ADJUSTMENTS, Gearbox fluid - drain &
refill.
2. Remove fluid cooler.
3. Release multiplugs from clips attached to fluid
pan.
4. Remove 21 bolts securing fluid pan to gearbox.
5. Remove fluid pan.
Refit
1. Clean fluid pan and mating face on gearbox.
2. Apply sealant, Part No. STC 4600to contact
faces of fluid pan and gearbox.
3. Position fluid pan, fit bolts and tighten
progressively to 7 Nm (5 lbf.ft).
4. Secure multiplugs to clips.
5. Fit fluid cooler.
6. Fill gearbox with fluid.
