Freelander Service Procedures
FUEL DELIVERY SYSTEM - PETROL
REPAIRS 19-2-37

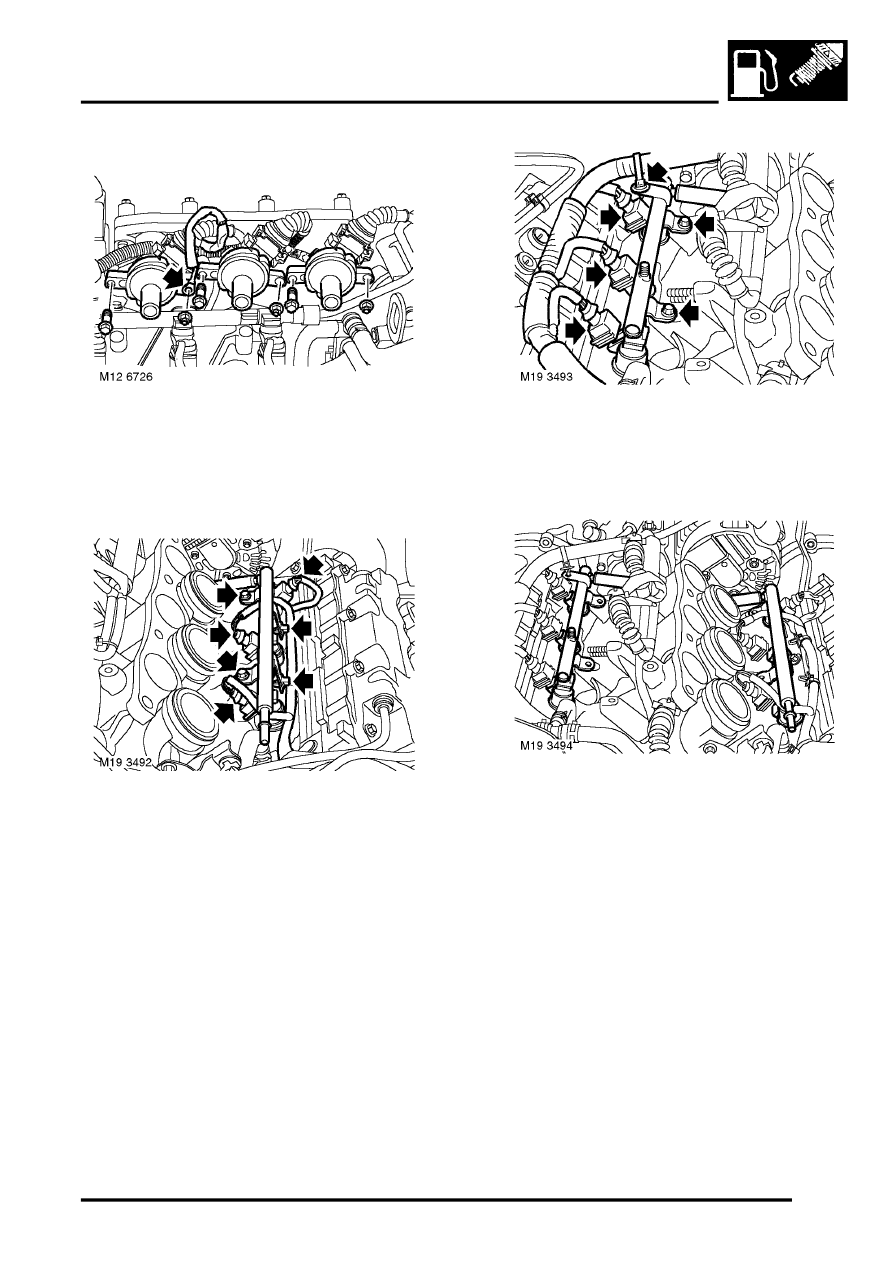

7. Up to 03MY: Note position of coil earth lead,
remove 3 nuts and 3 bolts securing ignition
coils to LH inlet manifold.
8. Up to 03MY: Remove ignition coils and
position aside.
9. Disconnect clips securing RH injector harness
to injector protection cover - if fitted or to bosses
on fuel rail.
10. Remove 2 bolts securing RH fuel rail to RH inlet
manifold.
11. Release clips and disconnect injector
multiplugs.
12. Remove 2 bolts securing fuel rail to LH inlet
manifold.
13. Release clips and disconnect injector
multiplugs.

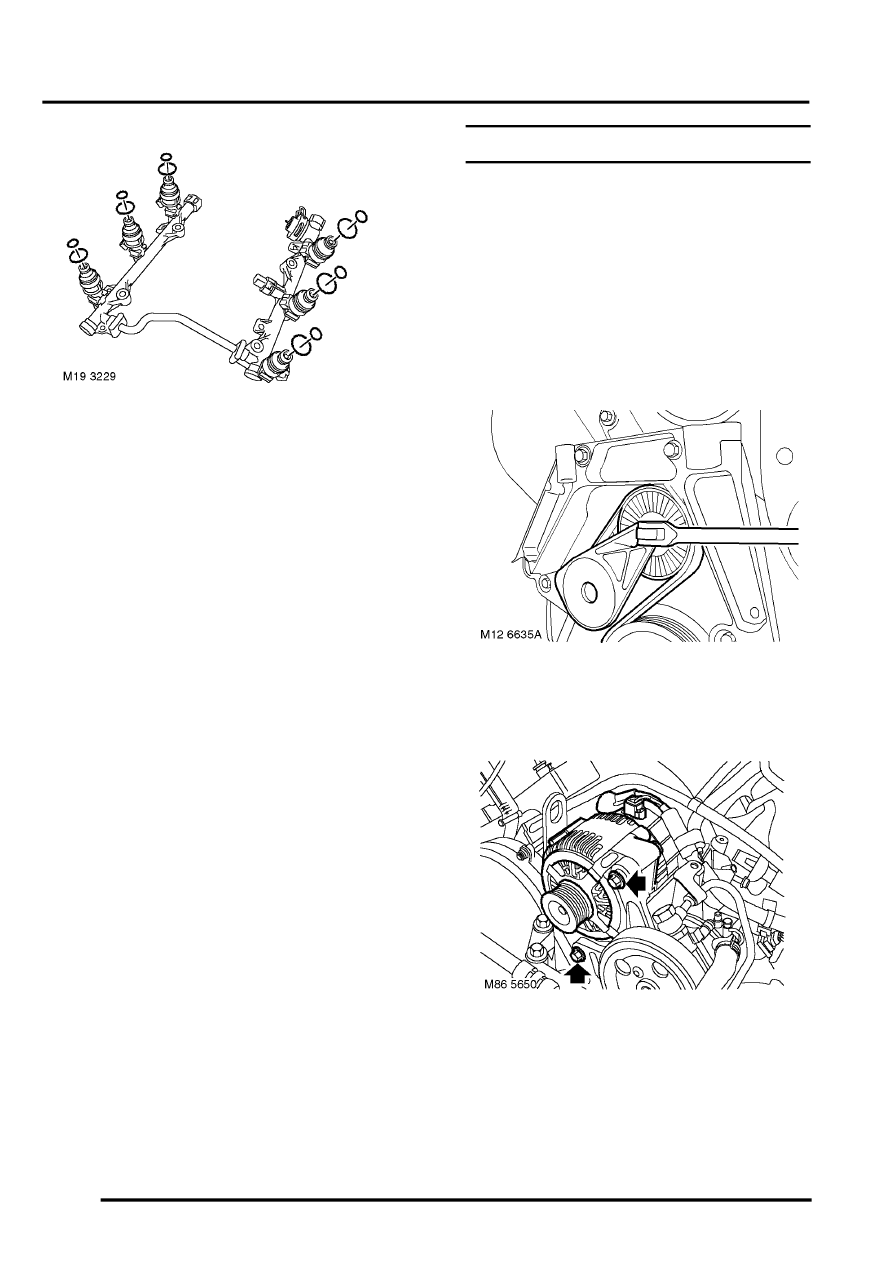

14. Release injectors from manifolds, raise fuel rail
assembly, disconnect 4 clips securing injector
harness to fuel rails and move harness aside.
