RESTRAINT SYSTEMS

75-22

REPAIRS

5. Connect deployment tool flylead LRT-86–003–

01 to back of rotary coupler.

6. Connect deployment tool flylead LRT-86–003–

01 to deployment tool LRT-86–003.

7. Connect tool LRT-86–003 to battery.

WARNING: Ensure all personnel are at least
15 metres (50 ft) away from the vehicle.

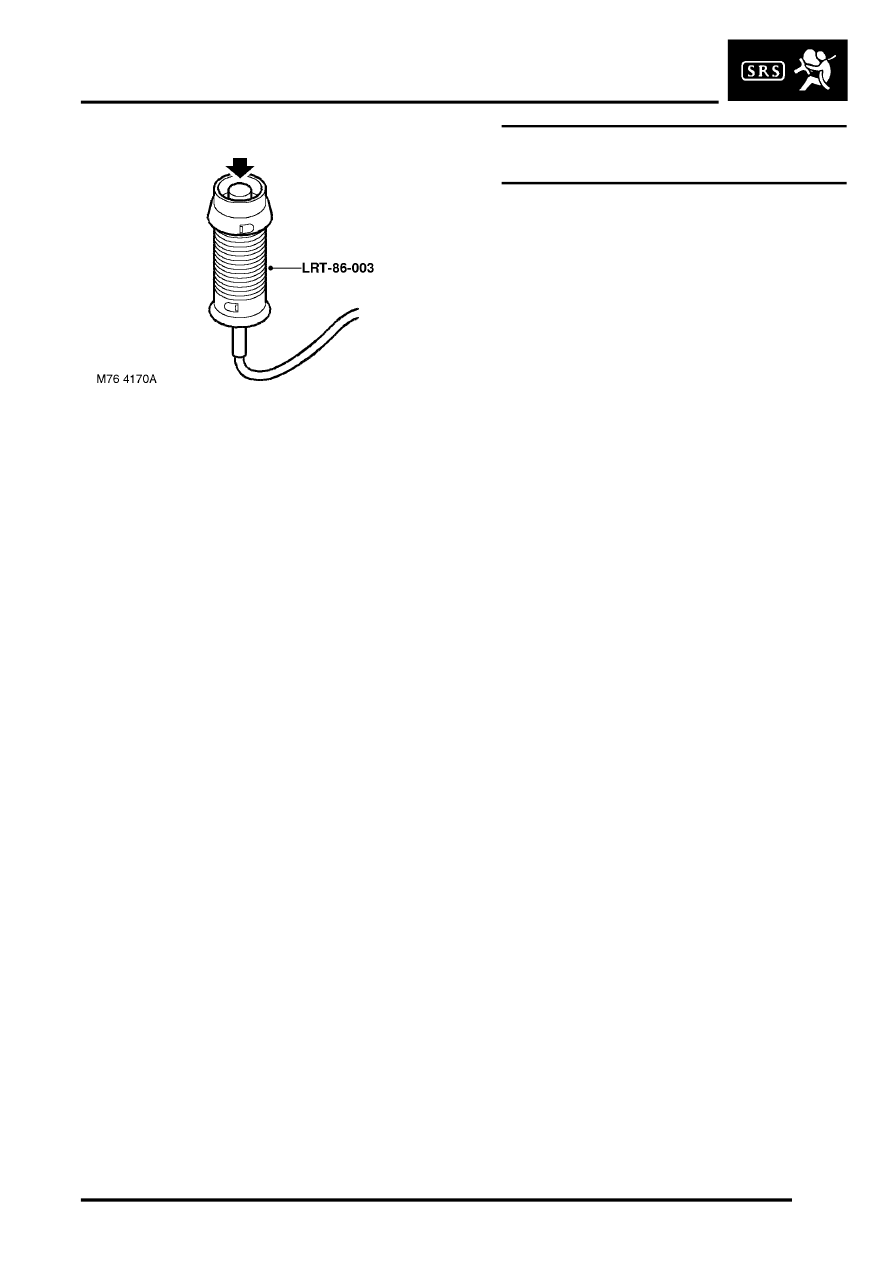

8. Press deployment tool operating button to

deploy airbag module.

WARNING: During deployment parts of the
airbag module become hot enough to burn
you. Wait 30 minutes after deployment
before touching the airbag module.

9. Disconnect deployment tool flylead LRT-86–

003–01 from back of rotary coupler.

10. Using gloves and face mask, remove airbag

module from steering wheel.


 +

 RESTRAINT SYSTEMS, REPAIRS,

Air bag - steering wheel.

11. Place airbag module in plastic bag and seal

bag.

12. Transport deployed airbag module to

designated area for incineration.

NOTE: Do not transport deployed SRS
components in the vehicle passenger
compartment.

13. DO NOT re-use or salvage any parts of the

SRS system including steering wheel or
steering column.
