Freelander Service Procedures
RESTRAINT SYSTEMS
75-18
REPAIRS
6. Fit and secure airbag to LRT-86-007/05.

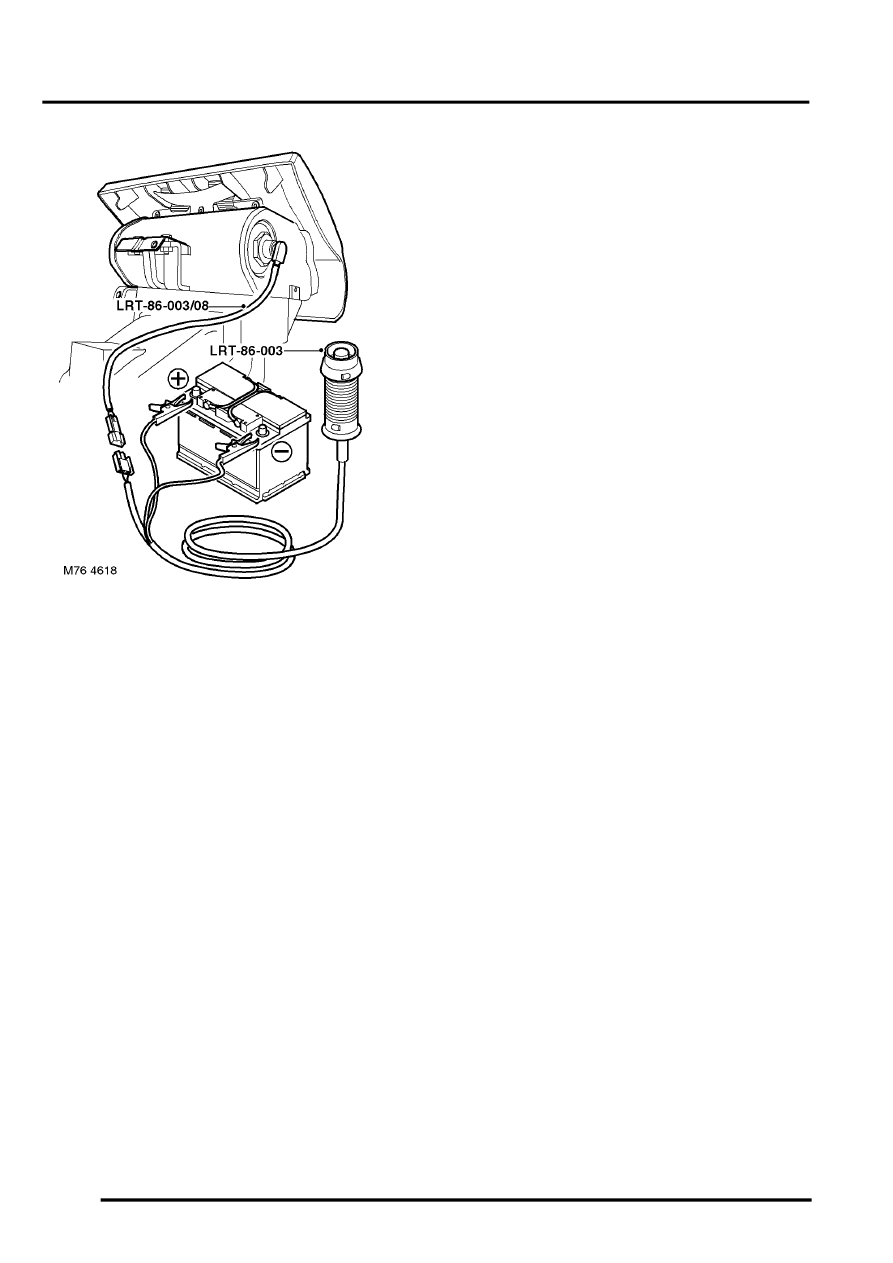

7. Connect deployment tool fly lead LRT-86-003/
08 to airbag.
8. Connect deployment tool LRT-86-003 to
deployment tool fly lead LRT-86-003/08.
9. Connect deployment tool LRT-86-003 to
battery.
WARNING: Ensure all personnel are at least
15 metres (50 feet) away from the airbag
module.
10. Press deployment tool operating button to
deploy airbag module.
11. Disconnect deployment tool from battery.
WARNING: During deployment parts of the
airbag module become hot enough to burn
you. Wait 30 minutes after deployment
before touching the airbag module.
12. Disconnect deployment tool fly lead from
airbag.
13. Remove airbag module from holding tools and
place in a sealed bag, ready for disposal.
14. Wipe down holding tools with a damp cloth and
remove from vice.
15. Transport deployed airbag module to
designated area for incineration.
NOTE: Do not transport deployed SRS
components in the vehicle passenger
compartment.
16. Do not re-use or salvage any parts of the
SRS system.
