Freelander Service Procedures
RESTRAINT SYSTEMS
75-10
REPAIRS

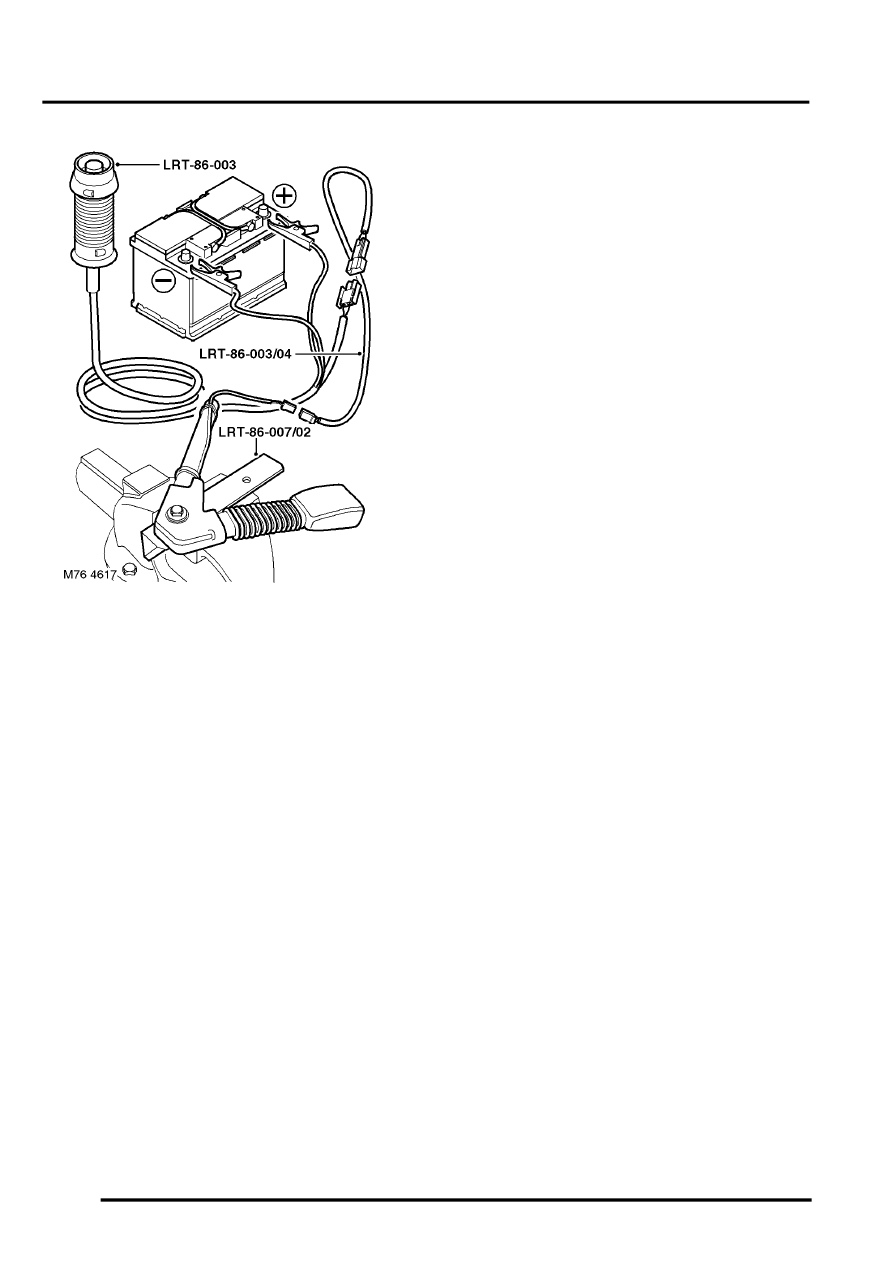

5. Fit and secure seat belt pre-tensioner to LRT-
86-007/02.
6. Connect deployment tool fly lead LRT-86-003/
04 to seat belt pre-tensioner.
7. Connect deployment tool LRT-86-003 to
deployment tool fly lead LRT-86-003/04.
8. Connect deployment tool LRT-86-003 to
battery.
9. Press deployment tool operating button to
deploy seat belt pre-tensioner.
WARNING: Ensure all personnel are at least
15 metres (50 feet) away from the airbag
module.
10. Disconnect deployment tool from battery.
WARNING: During deployment parts of the
airbag module become hot enough to burn
you. Wait 30 minutes after deployment
before touching the airbag module.
11. Disconnect deployment tool fly lead from seat
belt pre-tensioner.
12. Remove seat belt pre-tensioner from holding
tool and place in a sealed bag, ready for
disposal.
13. Wipe down holding tools with a damp cloth and
remove from vice.
14. Transport deployed seat belt pre-tensioner to
designated area for incineration.
NOTE: Do not transport deployed SRS
components in the vehicle passenger
compartment.
15. Do not re-use or salvage any parts of the
SRS system.
