Range Rover P38
76
CHASSIS AND BODY
NEW RANGE ROVER
16
REPAIR

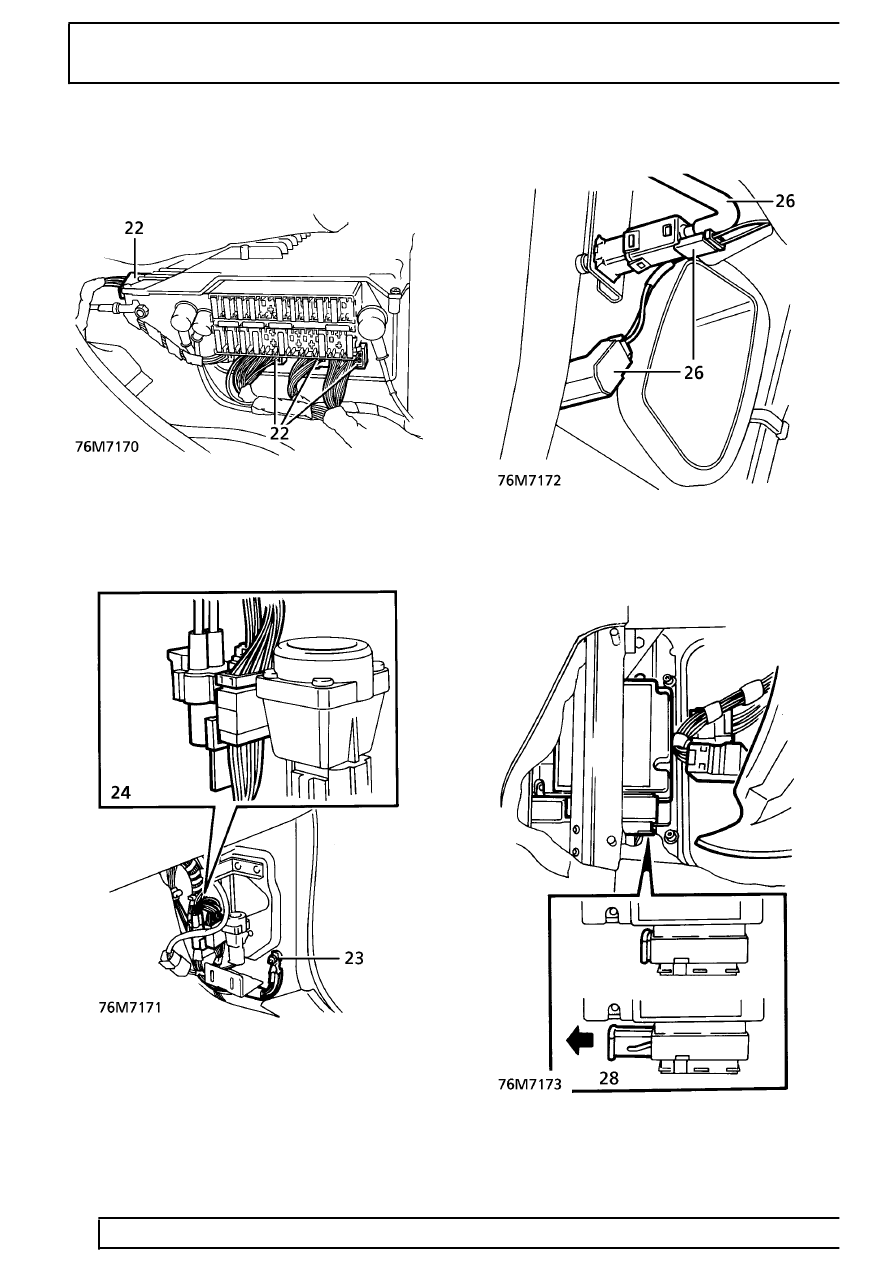

22. Disconnect 4 multiplugs from Body Electrical
Control Module (BeCM)
23. Remove captive nut, remove earth wires from
stud at base of driver’s side ’A’ post.
24. Disconnect multiplugs at base of each ’A’ post.
25. Release BeCM harness from sill, route into
fascia to prevent fouling as fascia is removed.
26. Disconnect multiplugs and release vacuum hose
from brake and clutch switches.
27. Models with SRS only: Disconnect SRS
multiplug from main harness.
