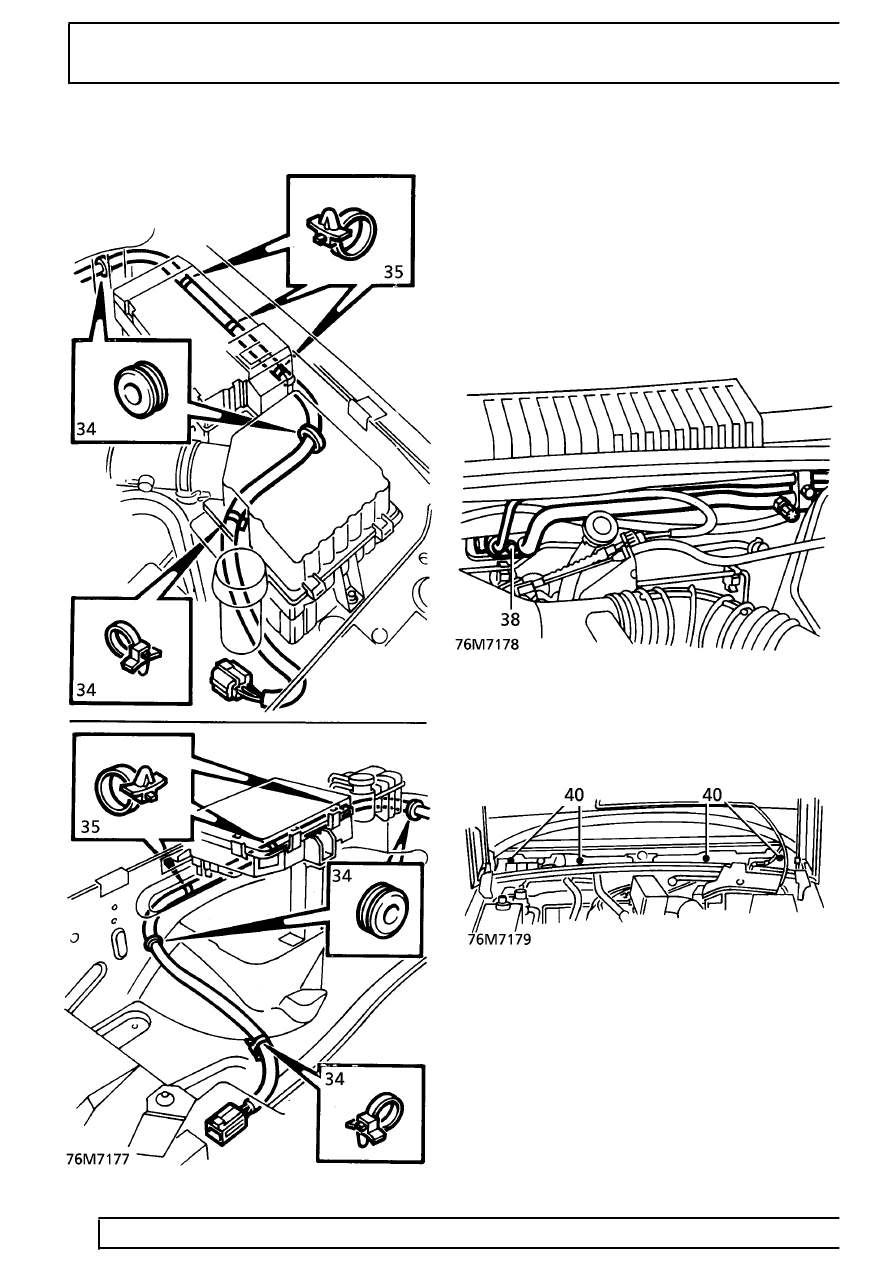

33. Raise air cleaner and battery tray for access to
crash sensor harness clips.
34. Release clips securing each crash sensor
harness to valance. Release harness grommets
and feed both harnesses through valance into
wheel arches.
35. Release 3 clips securing each crash sensor
harness to underside of wheel arches.
36. Release harness grommets, feed harnesses
through bulkhead and route into fascia to
prevent fouling as fascia is removed.
37. Vehicles with air conditioning only: Discharge
air conditioning system.
See AIR
CONDITIONING, Adjustment.
38. Remove bolt securing pipe clamp to
Thermostatic Expansion Valve (TXV).
39. Release pipes from TXV and remove ’O’ rings.
Seal pipes and ports of TXV.
40. All models: Remove 4 tube bolts securing
fascia to scuttle panel.
