Automatic gearboxComponents · page 4 of 7

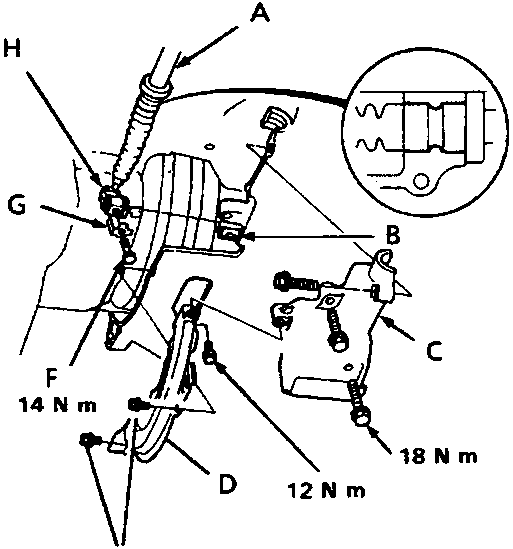

Diagram showing shift cable, control shaft, torque converter cover, and control lever with labeled parts A through H and torque values 14 N m, 12 N m, and 18 N m.
A Shift cable B Control shaft C Shift cable cover D Torque converter cover E Torque converter cover bolts F Lock bolt G Lock washer H Control lever 9. Install the control lever with the shift cable on the control shaft. CAUTION: Take care not to bend the shift cable when installing it. 10. Install the lock bolt with a new lock washer, then bend the lock tab. 11. Install the torque converter cover and shift cable cover.

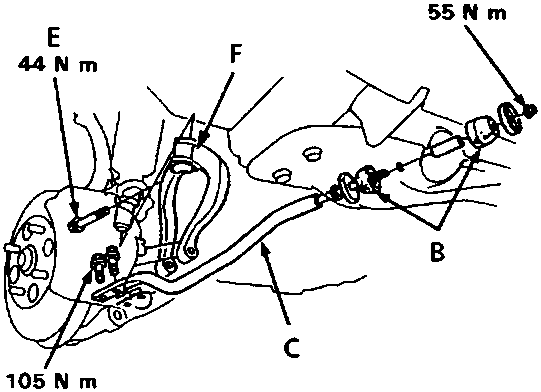

Diagram showing radius rod, damper fork, and damper pinch bolt with labeled parts A through F and torque values 44 N m, 55 N m, and 105 N m.
A Self locking nut B Rubber bushings C Radius rod D Radius rod bolts E Damper pinch bolt F Damper fork 12. Install the right radius rod and damper fork. Note: Check for deterioration or damage of the radius rod rubber bushings.

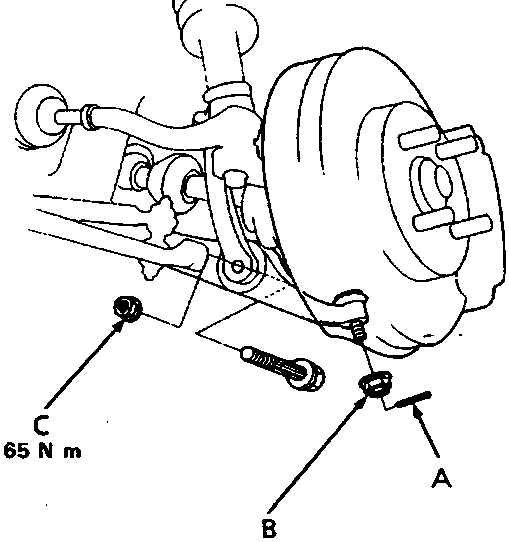

Diagram showing driveshaft end with cotter pin, castle nut, and self locking nut with labeled parts A through C and torque value 65 N m.
A Cotter pin B Castle nut C Self locking nut 13. Install new set rings on the ends of the driveshaft. 14. Install the right and left driveshafts. Note: Turn the right and left steering knuckles fully outward, and axially into the differential until you feel the set ring engage the side gear.
