Automatic gearboxComponents · page 5 of 7
  1. Install the damper fork to the lower arm. Then install the ball joint to the lower arm using the castle nuts and new cotter pins.

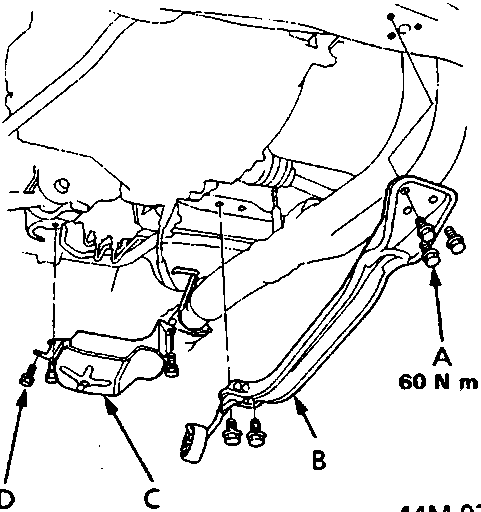

Diagram showing installation of damper fork, ball joint, centre beam and steering gearbox guard with securing bolts labeled A, B, C, D and torque values 60 N m and 12 N m

A Centre beam securing bolts
B Centre beam
C Steering gearbox guard – RH steering
D Securing bolts

  1. LHD: Install the centre beam.
    RHD: Install the steering gear box guard and centre beam.

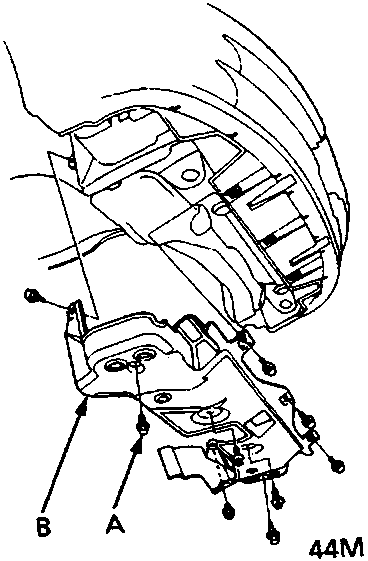

Diagram showing splash shield installation with securing bolts labeled A and splash shield labeled B

A Splash shield securing bolts
B Splash shield

  1. Install the splash shield.

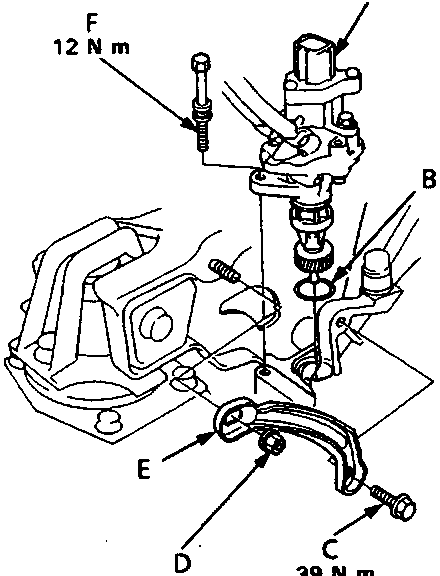

Diagram showing vehicle speed sensor, 'O' ring, rear stiffener and securing bolts/nuts labeled A through F with torque values 12 N m, 21 N m and 39 N m

A Vehicle speed sensor
B 'O' ring
C Rear stiffener securing bolt
D Rear stiffener securing nut
E Rear stiffener
F Vehicle speed sensor securing bolt

  1. Install the vehicle speed sensor/power steering speed sensor and rear stiffener.

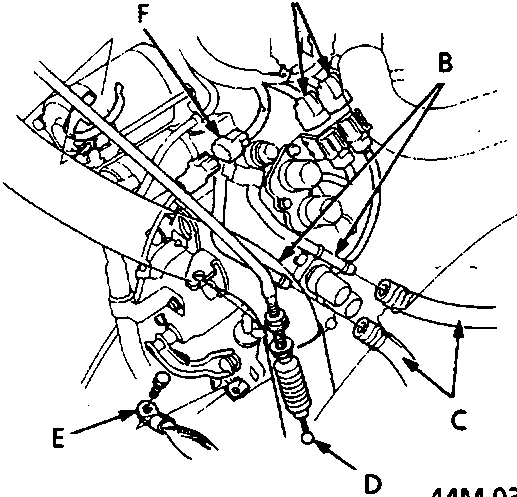

Diagram showing solenoid valve harness connectors, fluid cooler pipes/hoses, throttle control cable, gearbox earth cable and mainshaft speed sensor harness labeled A through F

A Solenoid valve harness connectors
B Fluid cooler pipes
C Fluid cooler hoses
D Throttle control cable
E Gearbox earth cable
F Mainshaft speed sensor harness
