Automatic gearboxComponents · page 6 of 7
  1. Connect the ATF cooler hoses to the joint pipes.
  2. Connect the lock – up control solenoid valve, shift control solenoid valve connectors and the throttle control cable.
  3. Connect the mainshaft speed sensor connector.
  4. Install the ground cable on the transmission housing.

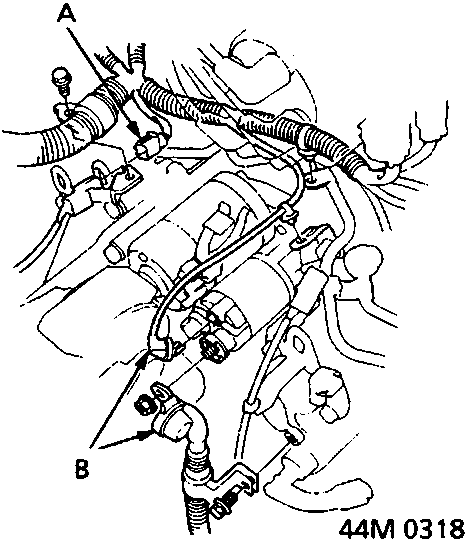

Diagram showing connections for countershaft speed sensor harness and starter motor cables

A     Countershaft speed sensor harness
B                                                                           &...... Starter motor cables

  1. Connect the countershaft speed sensor connector.
  2. Connect the starter motor cables.

Note: When installing the starter motor cable, make sure that the crimped side of the ring terminal is facing out.

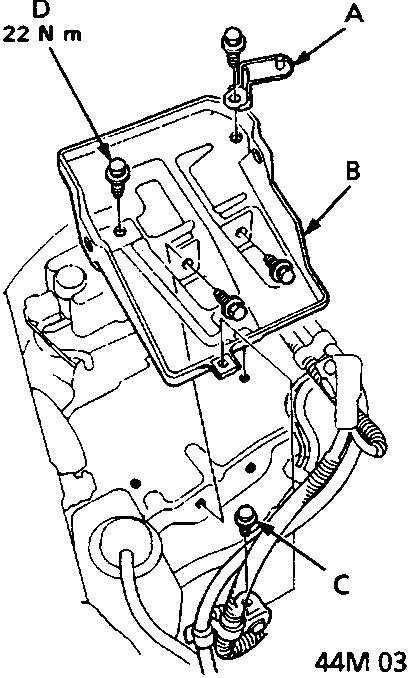

Diagram showing air cleaner housing guide, battery base, battery cable bolt and battery base securing bolt with torque value 22 N m

A     Air cleaner housing guide
B                                        &...... Battery base
C                                     &...... Battery cable bolt
D     Battery base securing bolt

  1. Install the harness stay and clamp.
  2. Install the battery base with the air cleaner housing guide, then install the battery cable on the base.

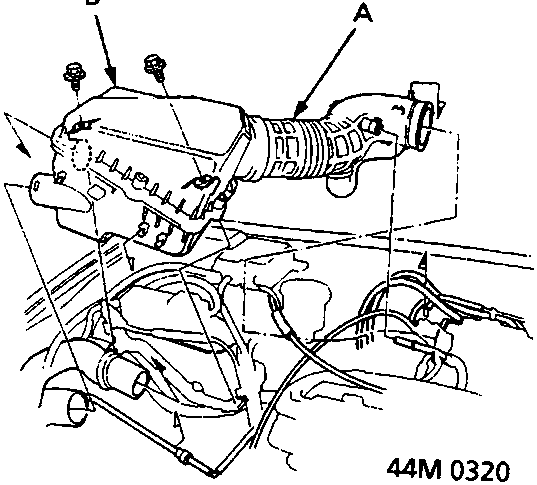

Diagram showing intake air duct and air cleaner housing

A     Intaake air duct
B                                    &..... Air cleaner housing

  1. Install the air cleaner housing and intake air duct.
