DOORS

76-1-28 REPAIRS

Latch - rear door

$% 76.37.13

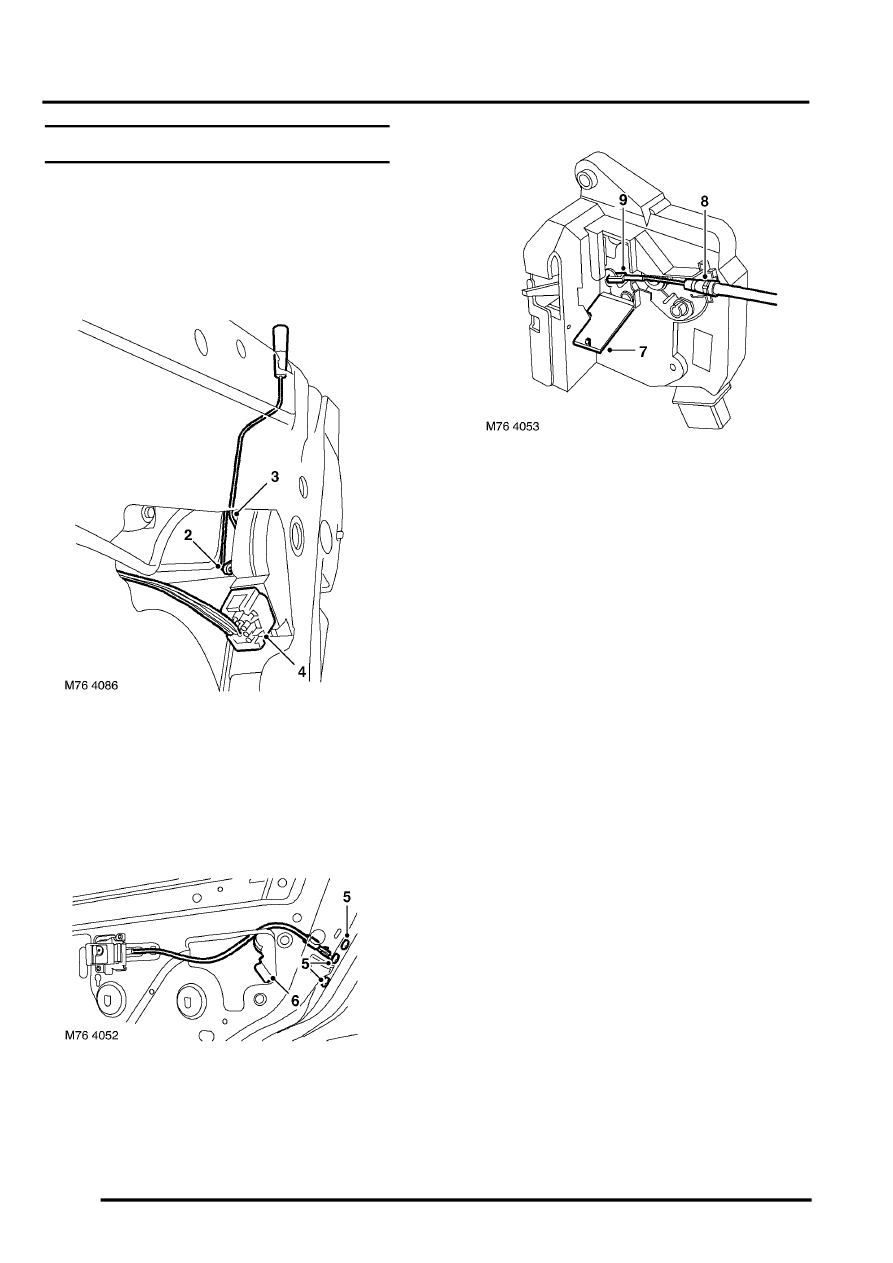

Remove

1. Remove rear door plastic sheet.

 +

 DOORS, REPAIRS, Plastic sheet -

rear door.

2. Release exterior handle control rod from latch.
3. Release sill button lock rod from door latch.
4. Disconnect multiplug from latch.

5. Remove 3 Torx screws securing latch to door.
6. Remove latch from aperture.

7. Open security flap on latch.
8. Release interior release cable clamp from

latch.

9. Disengage interior release cable from latch.

Refit

1. Secure interior release cable to latch and close

latch security flap.

2. Position latch to door, fit and tighten Torx

screws.

3. Connect multiplug to latch.
4. Connect exterior handle control rod to latch.
5. Fit sill button lock rod to latch.
6. Check operation of latch.
7. Fit rear door plastic sheet.

 +

 DOORS, REPAIRS, Plastic sheet -

rear door.
