DOORSSeal - waist inner - tail door

DOORS

REPAIRS 76-1-13

Seal - waist inner - tail door

$% 76.31.67

Remove

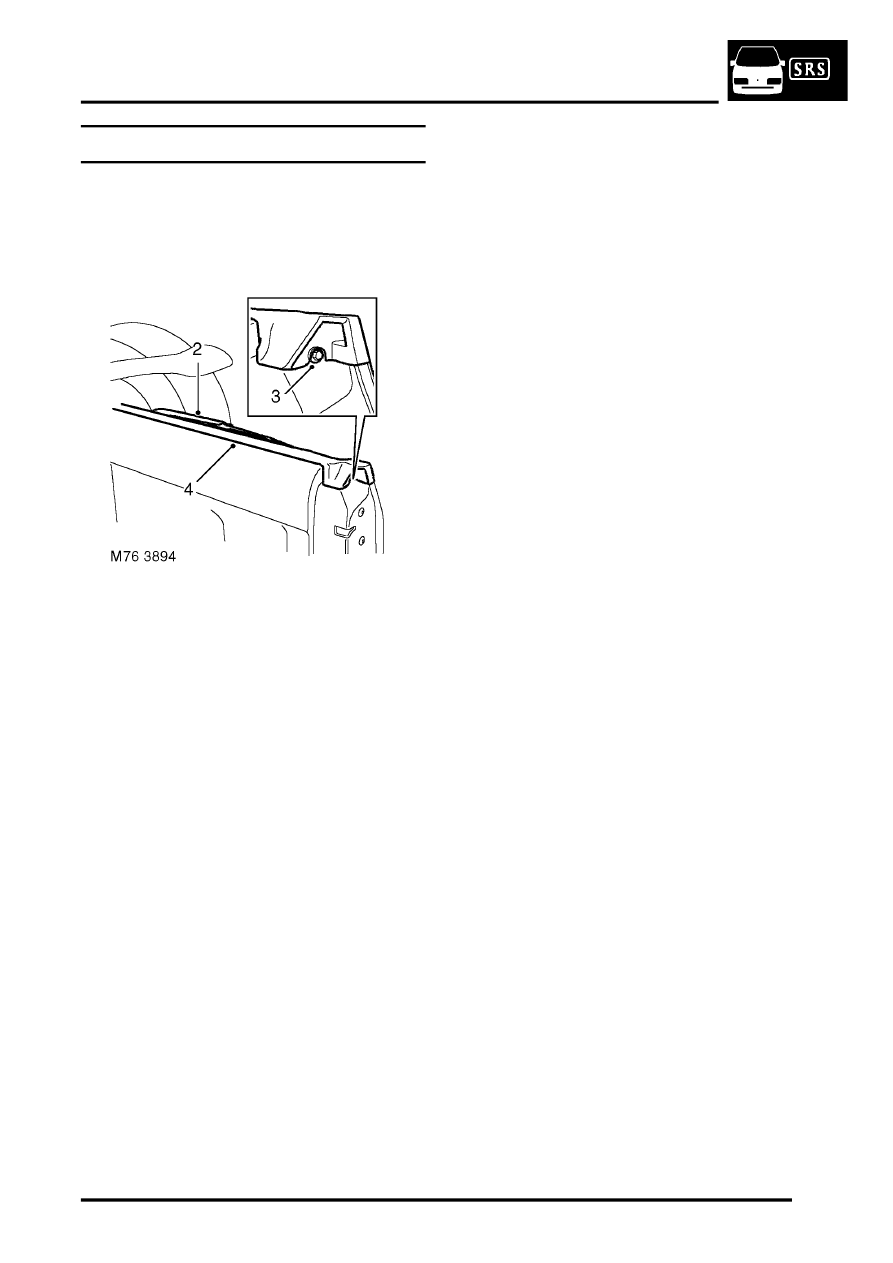

1. Lower rear screen.

2. Raise wiper blade away from seal.
3. Remove 2 bolts from ends of seal.
4. Release seal from door flanges.
5. Remove waist seal.

Refit

1. Position seal to door flanges and secure with

bolts.

2. Lower wiper blade onto seal.
3. Raise rear screen.
