Rover 600 Repair Manual Supplement (1993-1999)02 · Engine - L Series
02 · Engine

Crankshaft rear oil seal

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Repairs › Crankshaft rear oil seal
Engine - L SeriesCrankshaft rear oil seal

Refit

  1. Use lint free cloth and thoroughly clean seal recess in oil pump and running surface on crankshaft.
Use lint free cloth and thoroughly clean seal recess in oil pump and running surface on cr

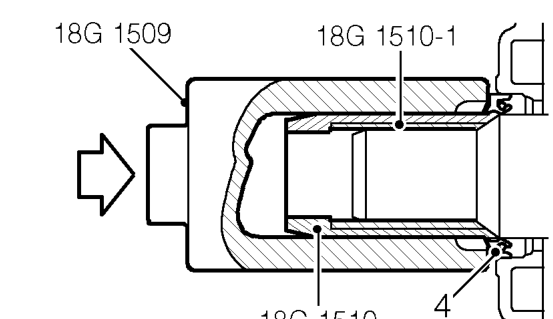

  1. Fit guide tools 18G 1510 and 18G 1510-1 onto crankshaft.
  2. Lubricate oil pump seal recess and guide tools with clean engine oil.
  3. Using guide tools position new oil seal on crankshaft journal and against oil pump. Drift into place using tool 18G 1509.
  4. Remove guide tools from crankshaft.
  5. Clean crankshaft timing gear and slide on to crankshaft.
  6. Fit camshaft timing belt. See this section.

CRANKSHAFT REAR OIL SEAL

Service repair no - 12.21.20

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove LH front road wheel.
  2. Remove flywheel. See this section.
  3. Remove sump, discard gasket. See this section.
Crankshaft rear oil seal – Remove sump, discard gasket. See this section.
  1. Remove 5 bolts securing oil seal housing.
  2. Remove and discard oil seal and housing.
