Engine - L SeriesCamshaft timing belt

CAMSHAFT TIMING BELT

Service repair no - 12.65.18

Remove

  1. Remove engine acoustic cover. See BODY, Exterior fittings.
  2. Remove auxiliary drive belt. See ELECTRICAL, Adjustments.
Camshaft timing belt – Remove auxiliary drive belt. See ELECTRICAL, Adjustments.

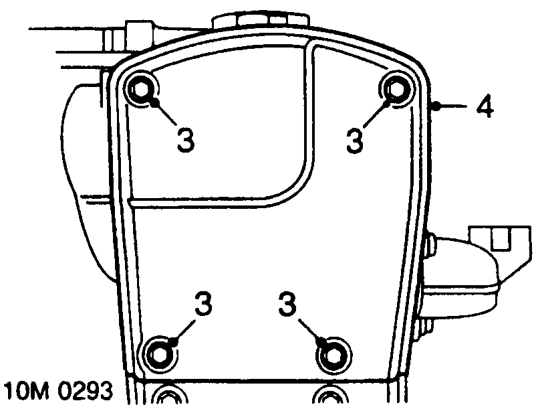

  1. Remove 4 bolts securing camshaft timing belt top cover.
  2. Remove top cover.
Camshaft timing belt – Remove top cover.

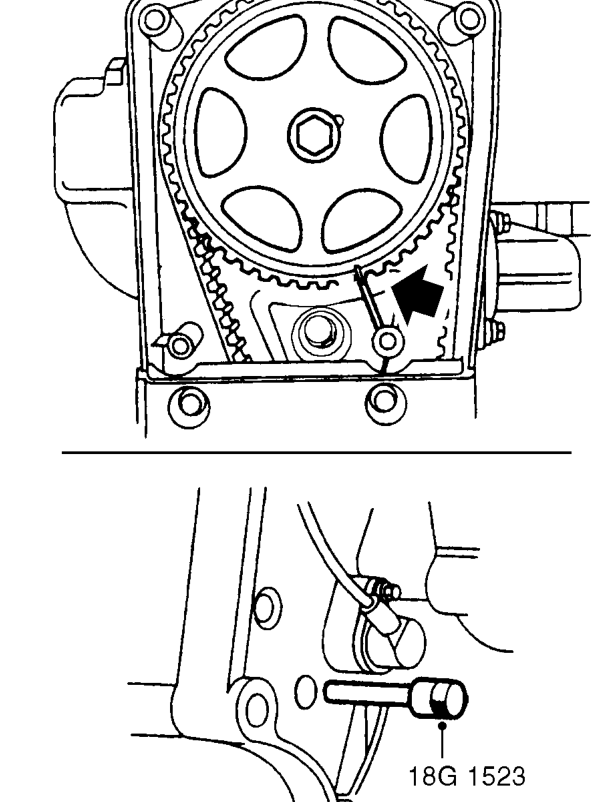

  1. Insert timing pin 18G 1523 through hole in gearbox mounting plate, hold pin in contact with flywheel.
  2. Using assistance, rotate crankshaft clockwise until timing pin 18G 1523 can be felt to enter hole in flywheel.

CAUTION: Do not use camshaft gear, gear retaining bolt or timing belt to rotate the crankshaft.

  1. Check that timing marks on camshaft gear and back cover are aligned.
  2. Remove camshaft timing belt lower front cover. See this section.
