SUMP GASKET

Service repair no - 12.60.38

Remove

  1. Remove front centre underbelly panel. See BODY, Exterior fittings.
  2. Drain engine oil.
  3. Remove oil filter. See this section.
Sump gasket – Remove oil filter. See this section.

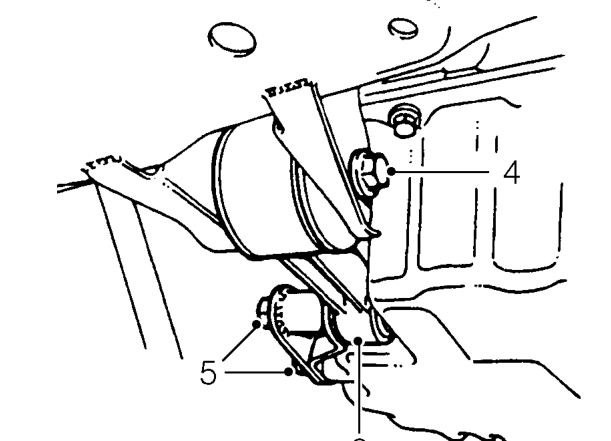

  1. Remove bolt securing engine lower steady bar to front beam.
  2. Remove 3 bolts securing engine lower steady bar and bracket to sump.
  3. Remove engine lower steady bar and bracket.
Sump gasket – Remove engine lower steady bar and bracket.

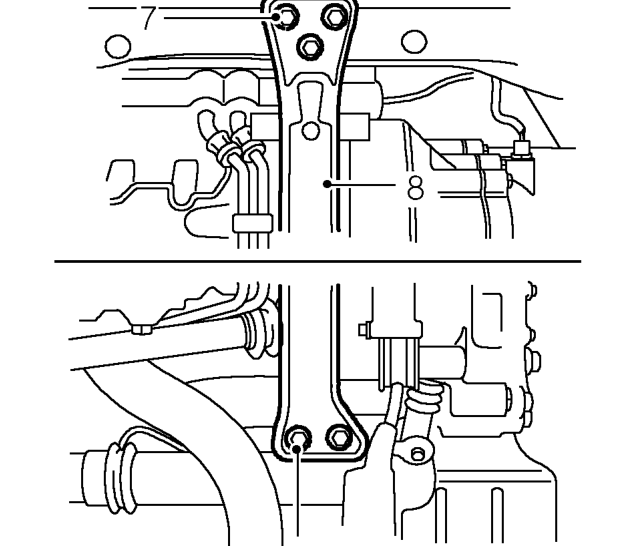

  1. Remove 5 bolts securing centre beam to front and rear beams.
  2. Remove centre beam.
Sump gasket – Remove centre beam.

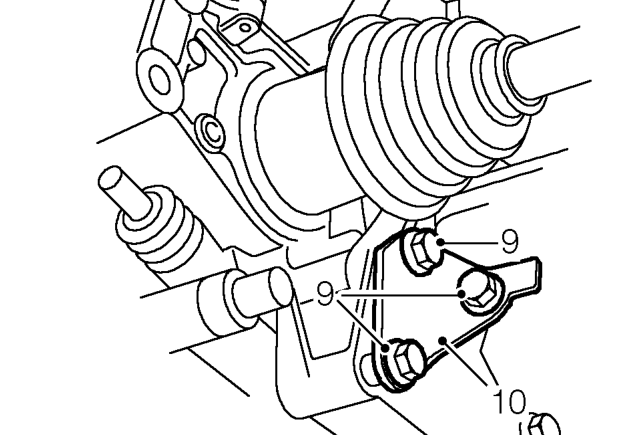

  1. Remove 3 bolts securing support bracket to gearbox and sump.
  2. Remove bracket.
  3. Position container to collect spillage from vacuum pump and oil cooler pipe unions.
