Rover 600 Repair Manual Supplement (1993-1999)02 · Engine - L Series
02 · Engine

Models with air conditioning

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Repairs › Models with air conditioning
Engine - L SeriesModels with air conditioning · page 1 of 4
Diagram

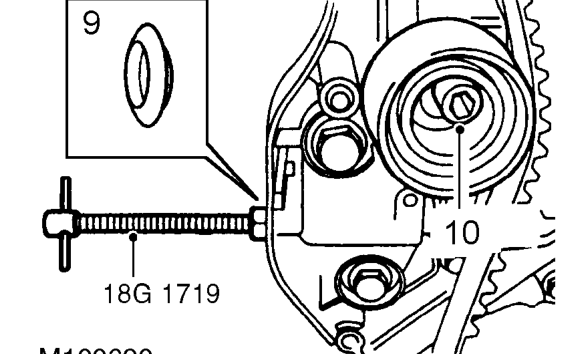

  1. Remove camshaft timing belt tensioner access plug from timing belt rear cover.
  2. Loosen but do not remove Allen bolt securing tensioner pulley.
  3. Screw timing belt tensioner retractor tool 18G 1719 into timing belt tensioner plunger.
  4. Tighten nut on tool 18G 1719 until timing belt tension is released.
  5. Tighten tensioner pulley Allen bolt.

Models with air conditioning

  1. Remove bolt securing air conditioning pipe clip to body.

All models

  1. Fit wooden block to jack and position jack to support engine.

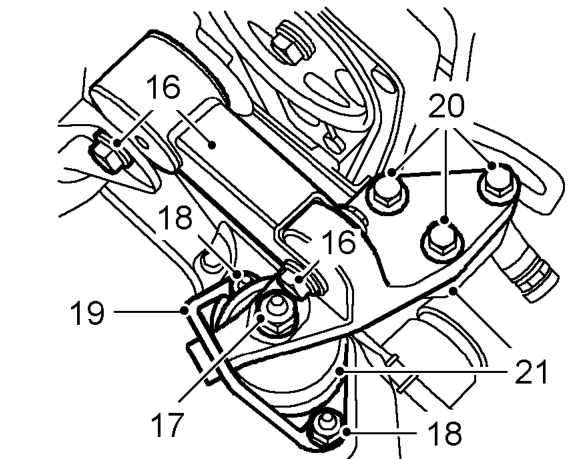

All models – Fit wooden block to jack and position jack to support engine.
  1. Remove 2 through bolts and remove engine RH upper steady bar.
  2. Loosen nut securing bracket to engine RH mounting.
  3. Remove 2 nuts securing restraint bar and engine RH mounting to body.
  4. Remove restraint bar.
  5. Remove 3 bolts securing engine bracket to engine.
  6. Remove engine RH mounting and bracket assembly.
