Engine - L SeriesAll models · page 1 of 7

All models

  1. Connect brake servo vacuum hose to vacuum pump and secure with clip.
  2. Align brake servo vacuum pipe to camshaft cover and secure with bolt.

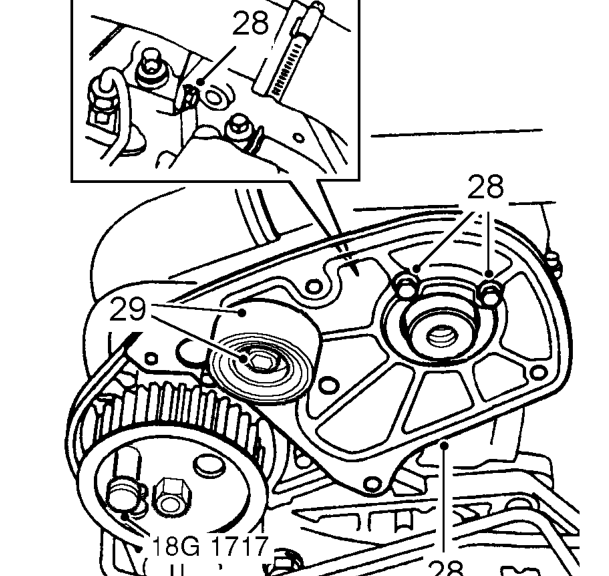

All models – Align brake servo vacuum pipe to camshaft cover and secure with bolt.
  1. Position back plate to engine, fit bolts and tighten to 8 Nm.
  2. Fit tensioner pulley to gearbox mounting plate locating dowel, fit but do not tighten Allen bolt.
  3. Check that timing pin 18G 1523 is fully inserted in hole in flywheel.

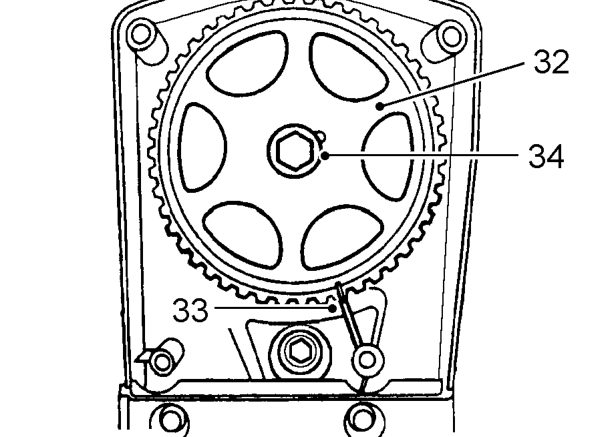

All models – Check that timing pin 18G 1523 is fully inserted in hole in flywheel.
  1. Clean camshaft gear and mating face.
  2. Locate camshaft drive gear on camshaft.
  3. Ensure timing marks on camshaft drive gear and back cover are aligned.
  4. Apply clean engine oil to threads of new camshaft gear retaining bolt, fit but do not tighten bolt.

CAUTION: Ensure camshaft does not rotate.

NOTE: Bolt is tightened after timing belt has been tensioned. Do not fit timing belt at this stage.
