Rover 600 Repair Manual Supplement (1993-1999)02 · Engine - L Series
02 · Engine

Models fitted with air conditioning

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Repairs › Models fitted with air conditioning
Engine - L SeriesModels fitted with air conditioning · page 1 of 2

Models fitted with air conditioning

Models fitted with air conditioning

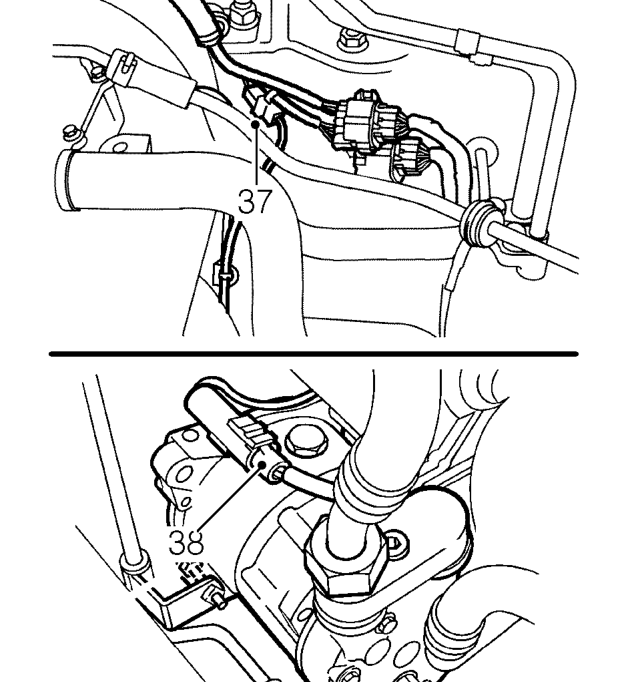

  1. Disconnect oil temperature sensor multiplug.
  2. Disconnect multiplug from compressor.

All models

All models – Disconnect multiplug from compressor.

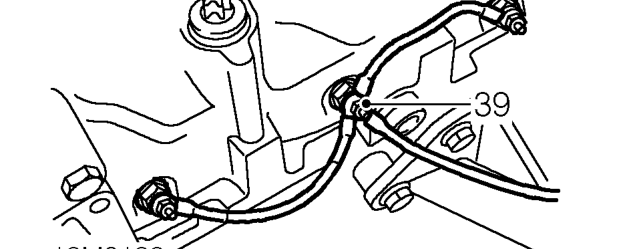

  1. Remove nut securing supply lead to No.2 glow plug.
All models – Remove nut securing supply lead to No.2 glow plug.

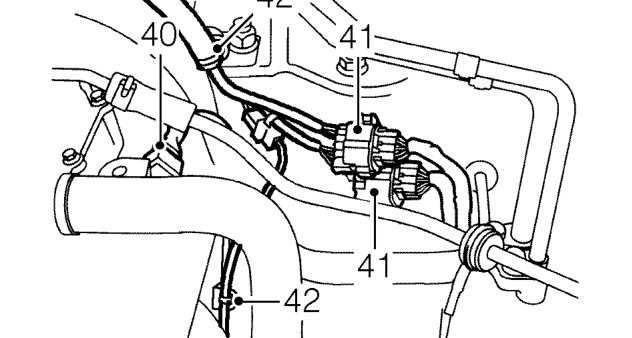

  1. Disconnect multiplug from IAT sensor.
  2. Release 2 engine harness to main harness connectors from bracket and disconnect multiplugs.
  3. Release harness from 2 clips on camshaft upper front cover and move harness aside.
All models – Release harness from 2 clips on camshaft upper front cover and move harness aside.

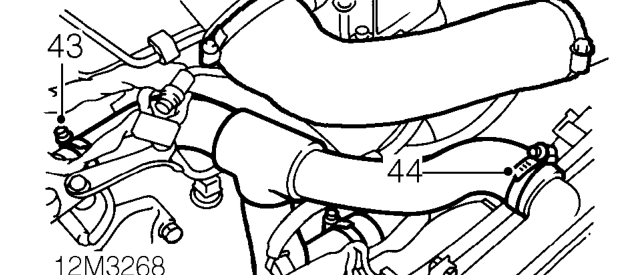

  1. Loosen clip and disconnect coolant hose from coolant outlet elbow.
  2. Loosen clip and disconnect coolant hose from radiator inlet pipe.
