Engine - L SeriesEngine and gearbox · page 1 of 3

ENGINE AND GEARBOX

Service repair no - 12.37.01.99

Remove

  1. Raise vehicle on a 2 post ramp.
  2. Remove road wheel(s).

Models fitted with air conditioning

  1. Recover refrigerant from air conditioning system. See AIR CONDITIONING, Adjustments.

All models

  1. Remove underbelly panel. See BODY, Exterior fittings.
  2. Drain engine oil and remove filter.
  3. Drain gearbox oil.
  4. Drain cooling system. See COOLING SYSTEM - ’L’ SERIES, Adjustments.
  5. Disconnect both battery leads, earth lead first.
  6. Remove air cleaner assembly. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
  7. Remove engine acoustic cover. See BODY, Exterior fittings.
All models – Remove engine acoustic cover. See BODY, Exterior fittings.

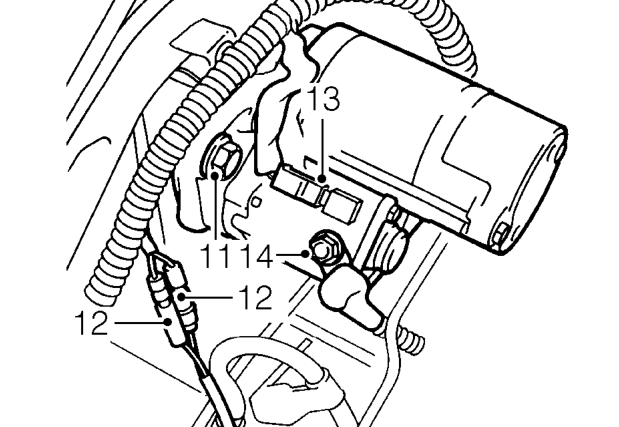

  1. Remove starter motor upper retaining bolt.
  2. Disconnect reverse lamp switch connectors.
  3. Disconnect starter solenoid connector.
  4. Remove nut securing battery lead to starter solenoid.
All models – Remove nut securing battery lead to starter solenoid.

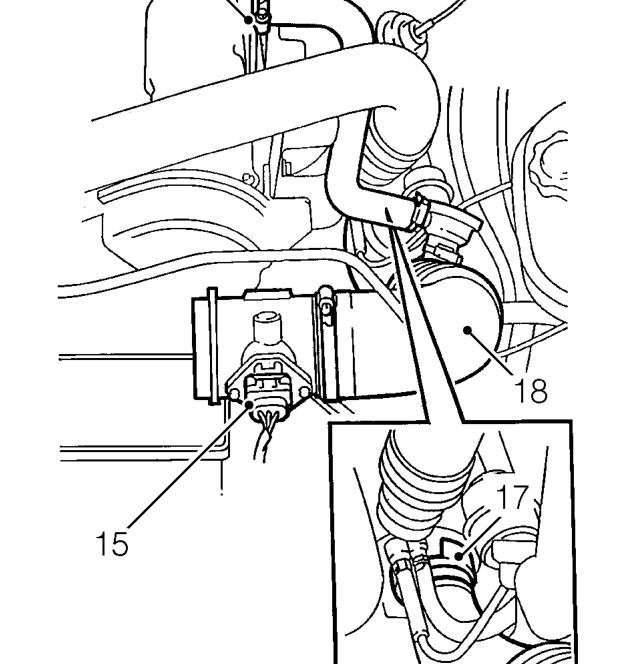

  1. Disconnect mass air flow sensor multiplug.
  2. Loosen clip and disconnect breather hose from camshaft cover.
  3. Loosen clip and disconnect air intake hose from turbocharger.
  4. Remove air intake hose assembly.
