Camshaft rear oil seal

28. Restrain camshaft using tool 18G 1521 and tighten gear bolt to 20 Nm + 90° .
29. Fit underbelly panel. See BODY, Exterior fittings.
30. Fit camshaft timing belt upper cover. See this section.
31. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
32. Connect battery earth lead.

CAMSHAFT REAR OIL SEAL

Service repair no - 12.13.06

Remove

1. Remove front centre underbelly panel. See BODY, Exterior fittings.
2. Remove camshaft timing belt upper front cover. See this section.
3. Remove fuel injection pump timing belt cover. See this section.

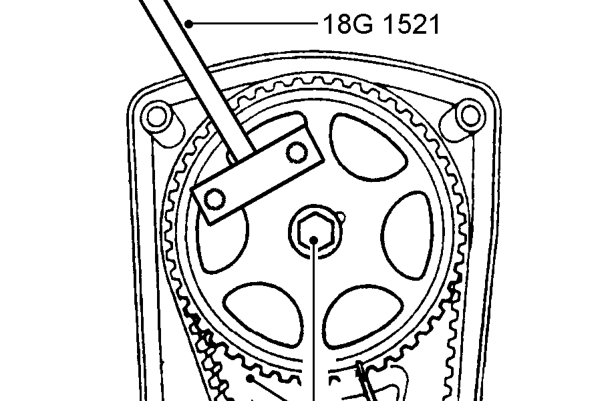

4. Restrain camshaft gear using tool 18G 1521.

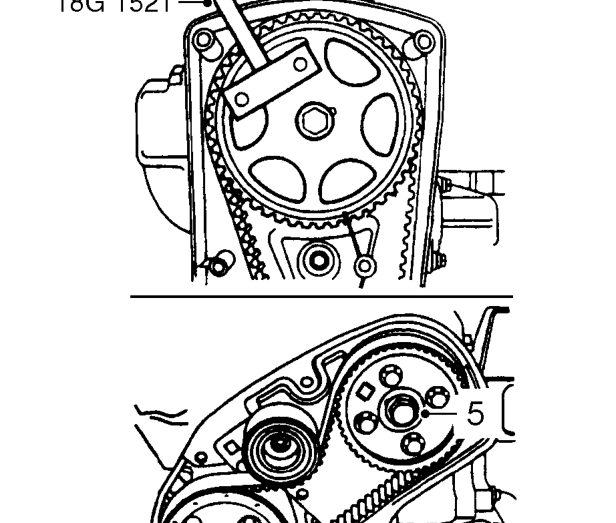

5. Loosen but do not remove bolt retaining injection pump timing belt camshaft gear.
