ENGINE STEADY BAR - UPPER

Service repair no - 12.45.16

Remove

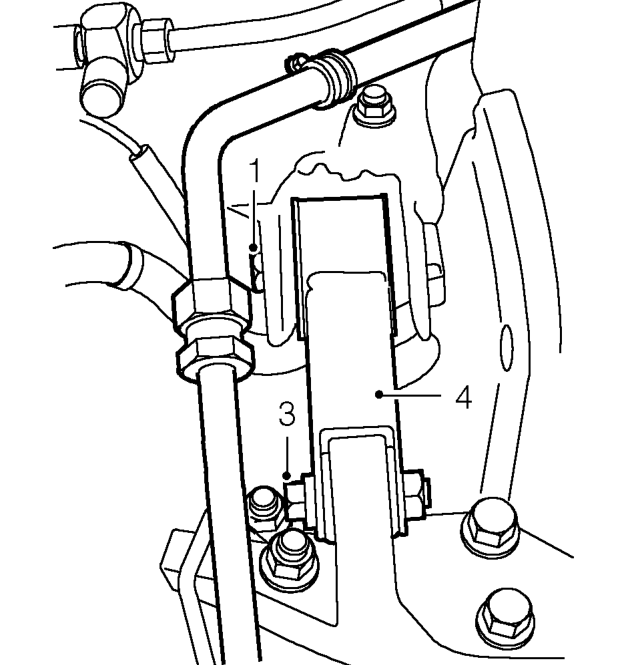

Engine steady bar - upper – Service repair no - 12.45.16
  1. Remove bolt securing steady bar to body.

Models with air conditioning only

  1. Remove bolt securing air conditioning low pressure pipe to suspension turret and move pipe aside.

All models

  1. Remove bolt securing steady bar to mounting bracket
  2. Remove steady bar.

Refit

  1. Fit and align steady bar to mounting bracket and body.
  2. Fit bolt securing steady bar to mounting bracket and tighten to 80 Nm.
  3. Fit bolt securing steady bar to body and tighten to 80 Nm.

Models with air conditioning only

  1. Fit bolt securing air conditioning low pressure pipe to suspension turret.
