Models with air conditioning

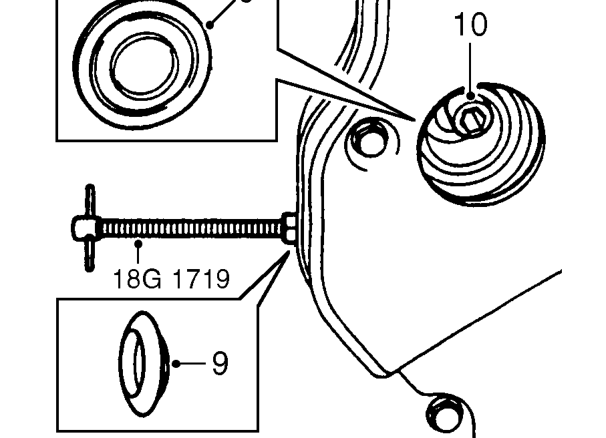

9. Remove access plugs from camshaft timing belt lower and rear covers.
10. Loosen but do not remove Allen bolt securing tensioner pulley.
11. Screw timing belt tensioner retractor tool 18G 1719 into timing belt tensioner.
12. Tighten nut on tool 18G 1719 until timing belt tension is released.
13. Tighten tensioner pulley Allen bolt.
14. Position trolley jack to support engine.

CAUTION: Use a block of wood or hard rubber pad to protect sump.

Models with air conditioning

15. Remove 2 bolts securing air conditioning pipe clips and raise pipe for access to engine upper tie bar bolt.

All models

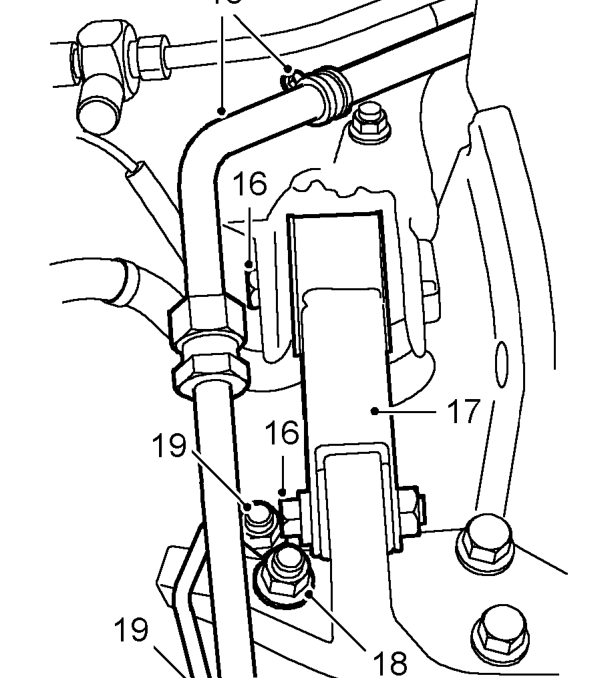

16. Remove 2 bolts securing engine upper tie bar.
17. Remove upper tie bar.
18. Loosen nut securing engine mounting bracket to engine mounting.
19. Remove 2 nuts securing RH engine mounting to body and remove restraint bar.
20. Raise RH side of engine on a jack sufficiently only to give access to fit seal removal tool 18G 1476.
