Rover 600 Repair Manual Supplement (1993-1999)02 · Engine - L Series
02 · Engine

Models with air conditioning (page 2 of 2)

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Repairs
Engine - L SeriesModels with air conditioning · page 2 of 2
Diagram

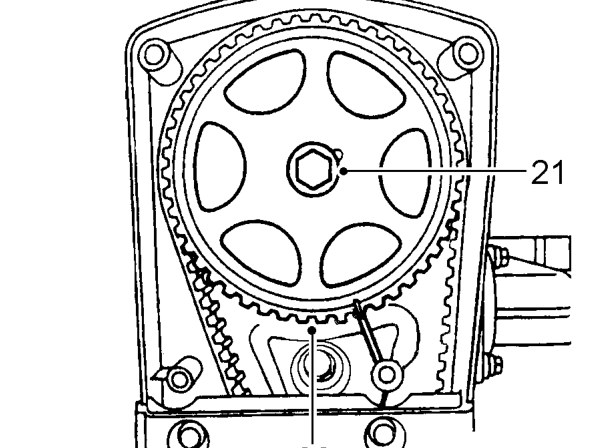

  1. Remove but do not discard camshaft gear retaining bolt.

CAUTION: Ensure camshaft does not rotate.

  1. Release camshaft gear from camshaft and remove from belt.

CAUTION: If the sintered gears have been subjected to prolonged oil contamination, they must be soaked in a solvent bath and thoroughly washed with solvent before refitment. Because of the porous construction of the sintered material, oil impregnated in the gear will emerge and contaminate a new belt.

If camshaft timing belt shows any sign of oil contamination renew camshaft timing belt. See this section.

If camshaft timing belt shows any sign of oil contamination renew camshaft timing belt. Se
  1. Fit but do not tighten the old camshaft gear retaining bolt.

CAUTION: Ensure camshaft does not rotate.

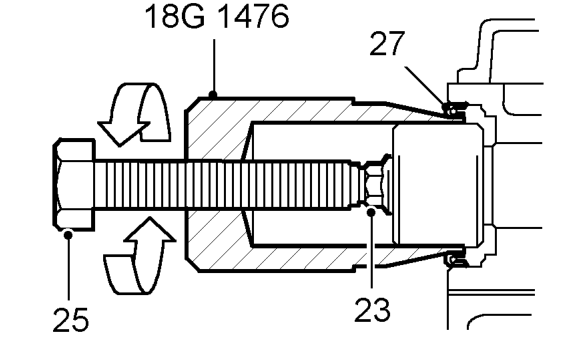

  1. Fit and tighten seal remover tool 18G 1476 to camshaft seal.
  2. Tighten seal remover centre screw to remove camshaft seal.
  3. Remove tool 18G 1476.
  4. Remove and discard seal from tool.
  5. Remove and discard camshaft gear retaining bolt.

CAUTION: Ensure camshaft does not rotate.
