OIL PUMP

Service repair no - 12.60.26

Remove

  1. Remove camshaft timing belt. See this section.
Oil pump – Remove camshaft timing belt. See this section.

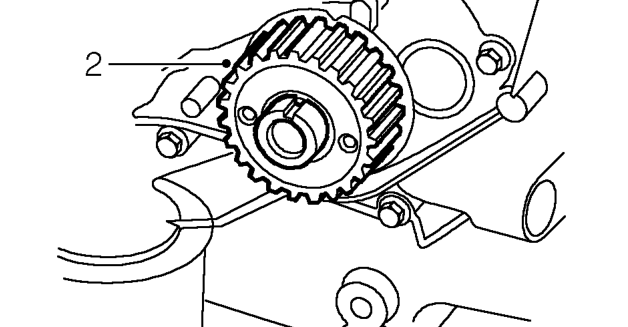

  1. Remove timing gear from crankshaft.
Oil pump – Remove timing gear from crankshaft.

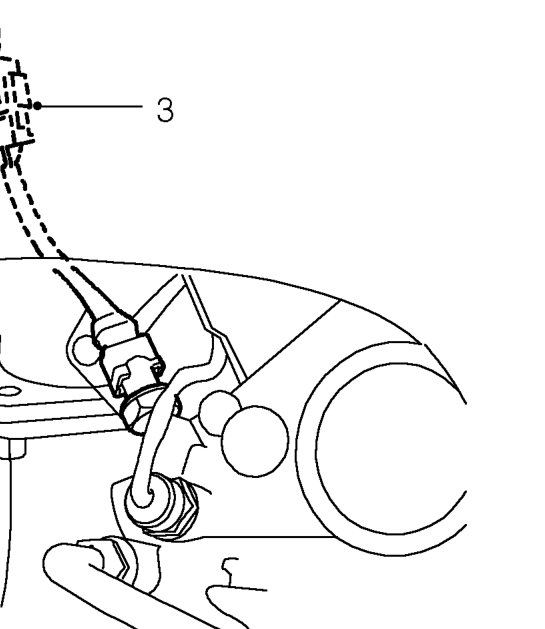

  1. Disconnect multiplug from oil pressure switch.

Models with air conditioning

  1. Disconnect oil temperature switch multiplug from engine harness.

All models

All models – Disconnect oil temperature switch multiplug from engine harness.

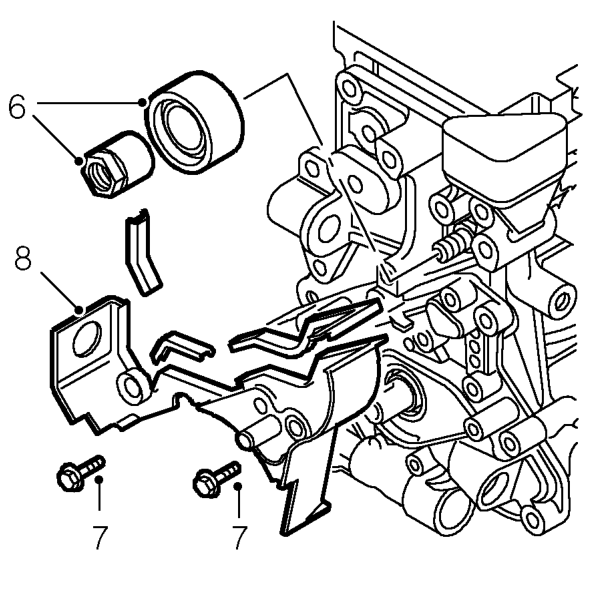

  1. Raise engine sufficiently only for access to camshaft timing belt idler pulley nut.
  2. Remove nut securing camshaft timing belt idler pulley and remove pulley.

NOTE: Idler pulley mounting stud may be unscrewed as nut is removed.

  1. Remove 2 bolts securing camshaft timing belt lower backplate.
  2. Remove backplate with sealing strip.
