ENGINE STEADY BAR - LOWER

Service repair no - 12.45.17

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove front centre underbelly panel. See BODY, Exterior fittings.

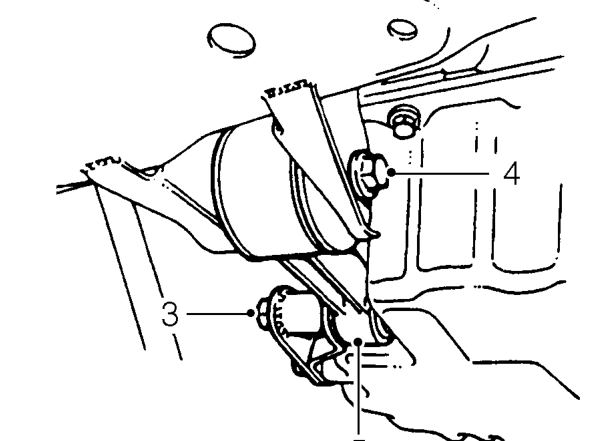

Engine steady bar - lower – Remove front centre underbelly panel. See BODY, Exterior fittings.
  1. Remove through bolt securing steady bar to engine bracket.
  2. Remove through bolt securing steady bar to front beam.
  3. Remove steady bar.

Refit

  1. Fit steady bar to front beam, fit through bolt and tighten to 80 Nm.
  2. Align steady bar to engine bracket, fit through bolt and tighten to 85 Nm.
  3. Fit front centre underbelly panel. See BODY, Exterior fittings.
  4. Remove stand(s) and lower vehicle.
