Rover 600 Repair Manual Supplement (1993-1999)02 · Engine - L Series
02 · Engine

Models with air conditioning

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Repairs › Models with air conditioning
Engine - L SeriesModels with air conditioning · page 1 of 2
Diagram

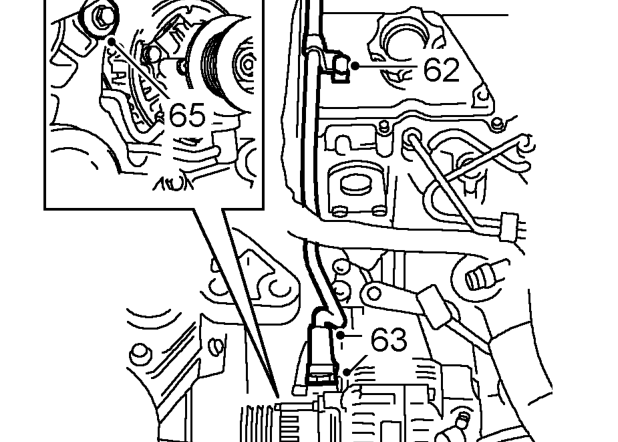

  1. Remove bolt securing brake servo vacuum pipe to camshaft cover.
  2. Release clip and disconnect brake servo vacuum hose from vacuum pump.

CAUTION: Plug hose and pump.

  1. Move vacuum pipe aside.

Models with air conditioning

  1. Remove alternator upper fixing bolt.

All models

All models – Remove alternator upper fixing bolt.

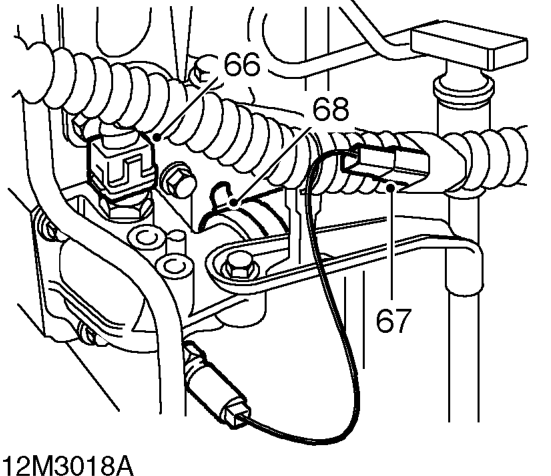

  1. Disconnect multiplug from coolant temperature sensor.
  2. Disconnect coolant temperature transmitter lead from engine harness.
  3. Loosen clip and disconnect coolant hose from engine.
  4. Remove fuel injector pipes. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.

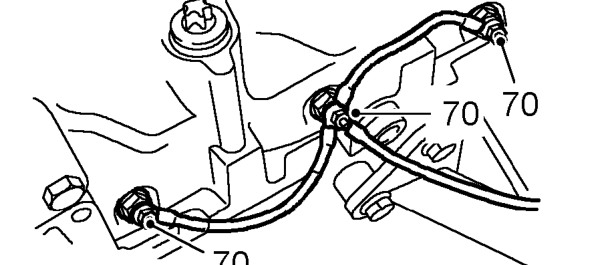

All models – Remove fuel injector pipes. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
  1. Remove nuts and disconnect feed leads from glow plugs.

NOTE: 4 glow plugs fitted to later engines.
