02 · Engine

Cylinder head gasket (page 7 of 7)

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Repairs
Engine - L SeriesCylinder head gasket · page 7 of 7
Diagram

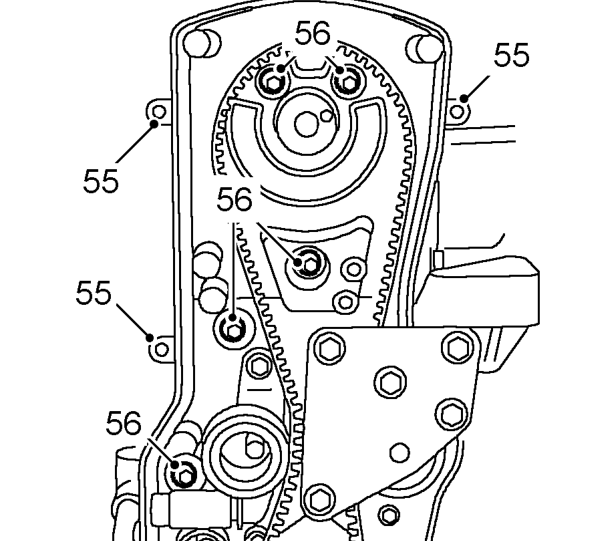

  1. Release 3 engine harness clips from camshaft drive belt back cover.
  2. Remove 5 bolts and remove camshaft timing belt back cover.
Remove 5 bolts and remove camshaft timing belt back cover.

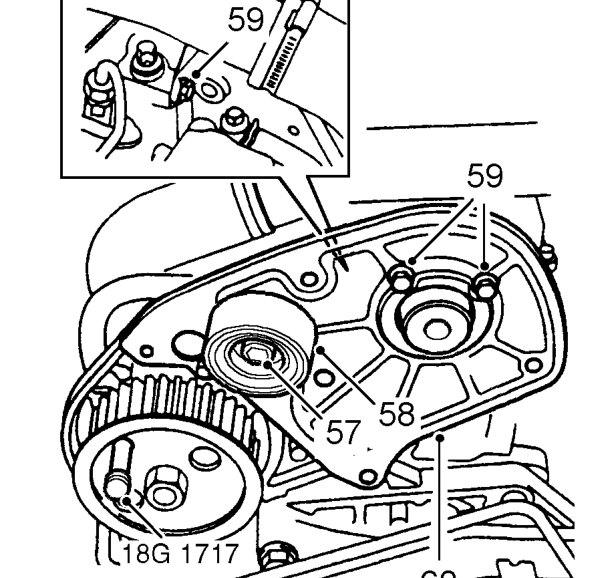

  1. Remove Allen bolt securing tensioner pulley to mounting plate.
  2. Remove tensioner.
  3. Remove 3 bolts securing injection pump timing belt back plate to cylinder head.

CAUTION: Do not remove locking pin 18G 1717.

  1. Remove back plate.
  2. Clean timing belt tensioner and backplate.
