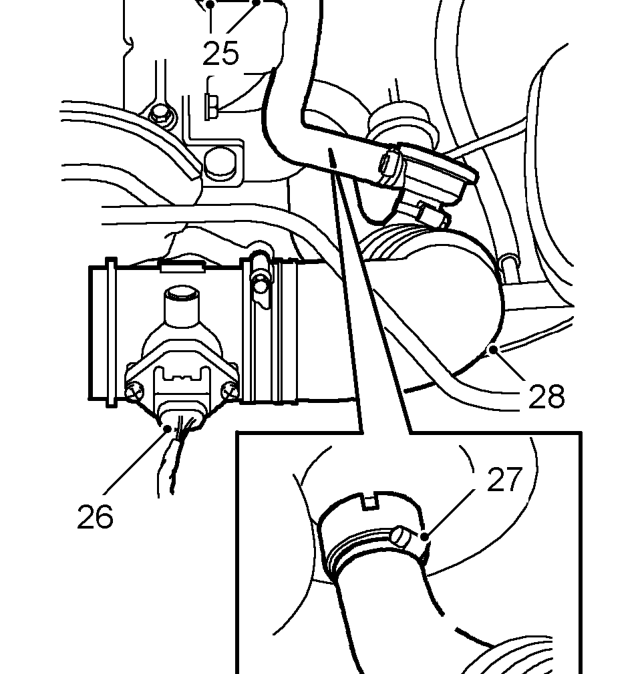

25. Loosen clip and disconnect breather hose from camshaft cover.
26. Disconnect multiplug from mass air flow (MAF) sensor.
27. Loosen clip and disconnect air intake pipe from turbocharger.
28. Remove air intake pipe assembly.

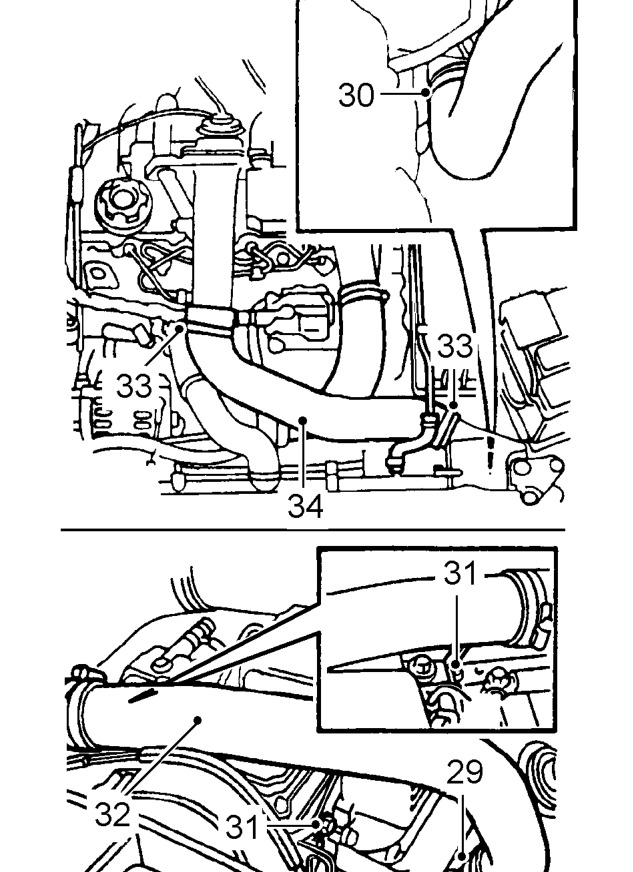

29. Loosen hose clip at turbocharger outlet.
30. Loosen hose clip at intercooler inlet.
31. Remove 2 bolts securing turbocharger outlet pipe to cylinder head and engine lifting eye bracket.
32. Remove pipe and hose assembly.
33. Loosen hose clips at intercooler outlet and plenum chamber.
34. Remove intercooler outlet hose.
