Cylinder head gasket (page 2 of 7)

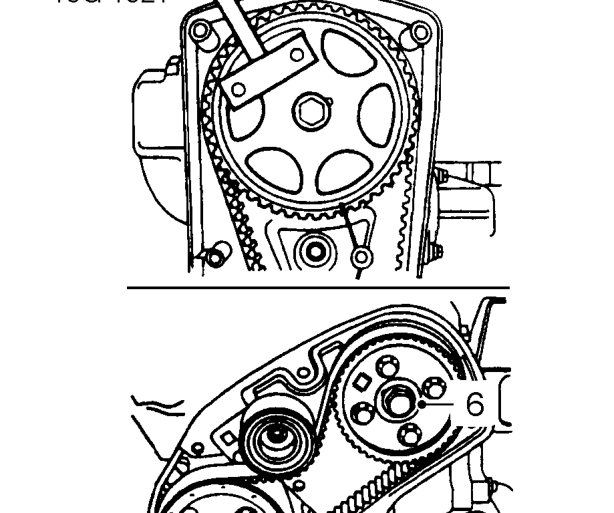

6. Restrain camshaft gear using tool 18G 1521 and loosen but do not remove bolt retaining injection pump timing belt camshaft gear.

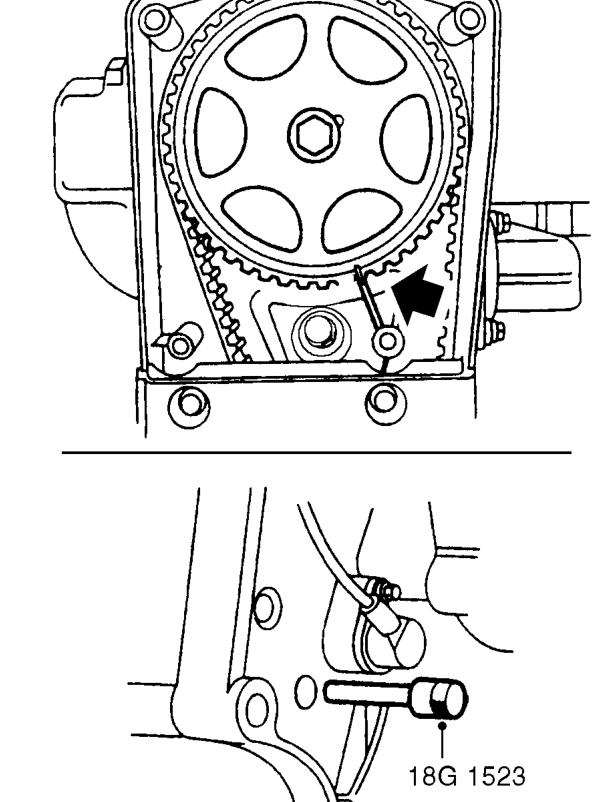

7. Insert timing pin 18G 1523 through hole in gearbox mounting plate, hold pin in contact with flywheel.
8. Using assistance, rotate crankshaft clockwise until timing pin 18G 1523 can be felt to enter hole in flywheel.

CAUTION: Do not use camshaft gear, gear retaining bolt or timing belt to rotate crankshaft.

9. Check that timing marks on camshaft gear and back cover are aligned.
