Engine - L SeriesEngine LH mounting

ENGINE LH MOUNTING

Service repair no - 12.45.11

Remove

  1. Remove LH underbelly panel. See BODY, Exterior fittings.
  2. Position trolley jack to support engine.
Engine lh mounting – Position trolley jack to support engine.

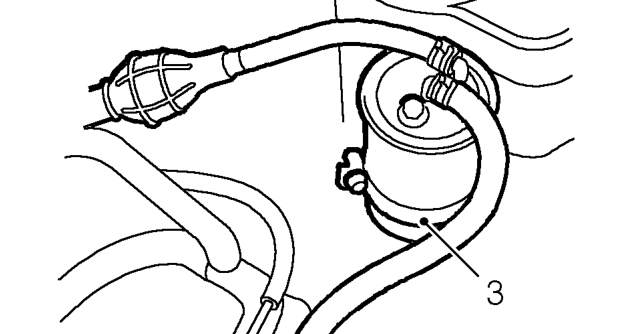

  1. Release fuel filter from suspension turret and position aside.
Engine lh mounting – Release fuel filter from suspension turret and position aside.

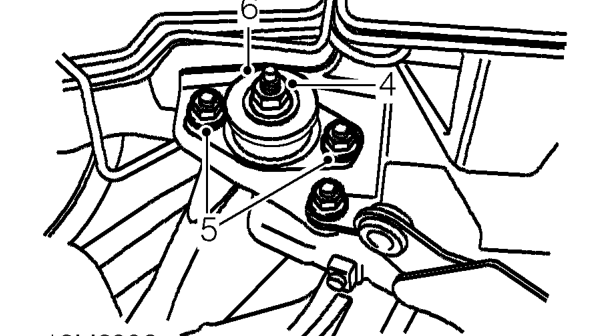

  1. Remove centre nut from engine LH mounting and collect washer.
  2. Remove 2 nuts securing mounting to body.
  3. Remove engine LH mounting.

Refit

  1. Position engine LH mounting to body and secure with nuts. Tighten nuts to 45 Nm.
  2. Fit washer and nut to engine mounting. Tighten nut to 70 Nm.
  3. Reposition fuel filter to suspension turret.
  4. Remove trolley jack.
  5. Fit LH underbelly panel. See BODY, Exterior fittings.
