Rover 600 Repair Manual Supplement (1993-1999)02 · Engine - L Series
02 · Engine

Camshaft cover gasket (page 2 of 2)

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Repairs
Engine - L SeriesCamshaft cover gasket · page 2 of 2

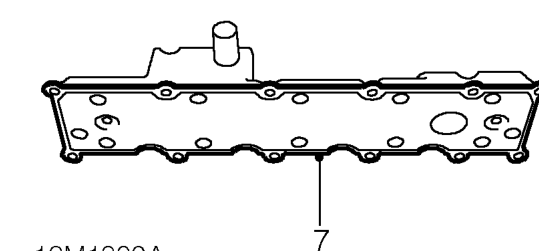

Diagram
  1. Remove and discard gasket.

Refit

  1. Clean camshaft cover and mating face on camshaft carrier, ensure bolt holes in camshaft carrier are clean and dry.
  2. Fit new gasket to camshaft cover.
Fit new gasket to camshaft cover.

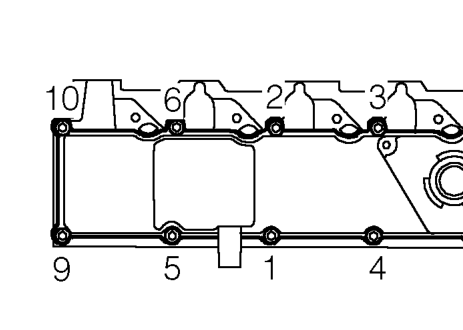

  1. Fit camshaft cover and tighten bolts in sequence shown to 12 Nm.
  2. Align brake servo vacuum pipe bracket to camshaft cover and secure with bolt.
  3. Connect engine breather hose to camshaft cover and tighten clip.
  4. Fit turbocharger outlet pipe. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
  5. Fit plenum chamber. See FUEL DELIVERY SYSTEM, Repairs.
