Rover 600 Repair Manual Supplement (1993-1999)02 · Engine - L Series
02 · Engine

Oil pressure switch

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Repairs › Oil pressure switch
Engine - L SeriesOil pressure switch

OIL PRESSURE SWITCH

Service repair no - 12.60.50

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove front centre underbelly panel. See BODY, Exterior fittings.
  2. Position drain tin below engine oil filter.

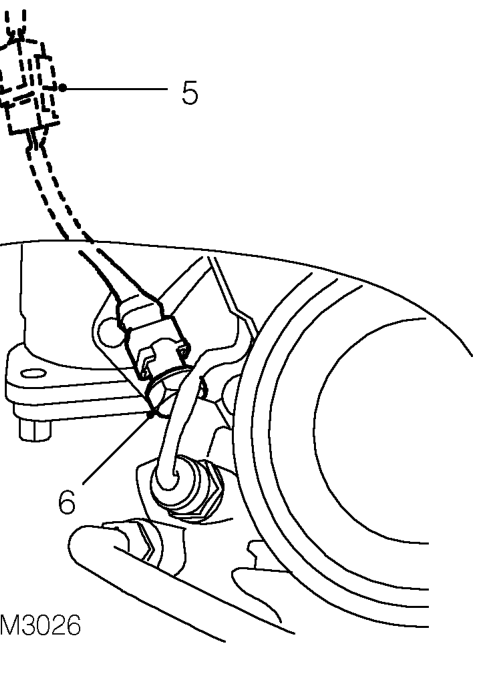

Oil pressure switch – Position drain tin below engine oil filter.
  1. Disconnect multiplug from oil pressure switch.
  2. Remove oil pressure switch.

Refit

  1. Clean oil pressure switch threads.
  2. Apply Loctite 577 to threads of switch, fit and tighten switch to 16 Nm.
  3. Connect multiplug to oil pressure switch.
  4. Fit front centre underbelly panel. See BODY, Exterior fittings.
  5. Remove stand(s) and lower vehicle.
  6. Top-up engine oil.
  7. Connect battery earth lead.
