Rover 600 Repair Manual Supplement (1993-1999)02 · Engine - L Series
02 · Engine

Models fitted with air conditioning

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Repairs › Models fitted with air conditioning
Engine - L SeriesModels fitted with air conditioning
Diagram

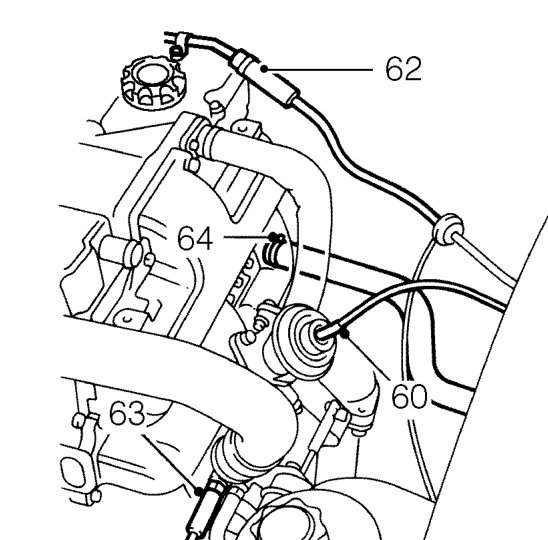

  1. Disconnect vacuum hose from EGR valve.
  2. Release clip vacuum hose to vacuum pipe.
  3. Disconnect vacuum hose from pipe and move aside.
  4. Disconnect boost pressure sensing pipe from turbocharger.

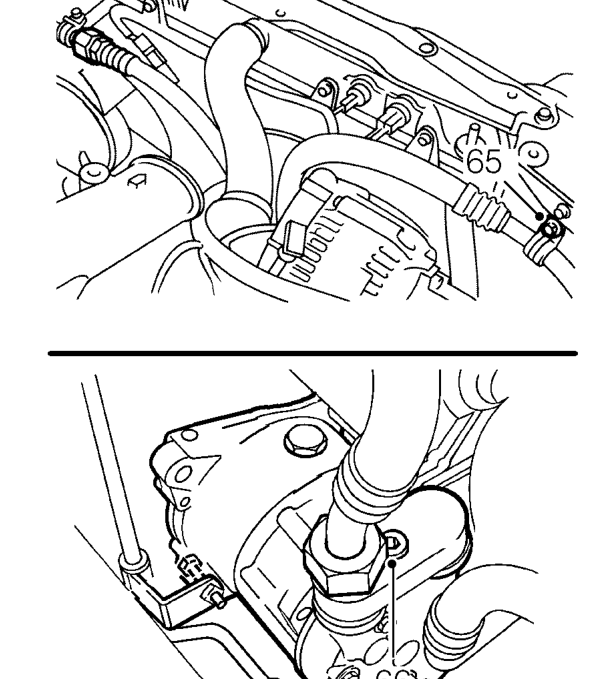

  5. Loosen clip and disconnect coolant heater hose from engine.
Loosen clip and disconnect coolant heater hose from engine.

Models fitted with air conditioning

  1. Remove bolt securing air conditioning pipe to bonnet locking platform.
  2. Remove bolt securing air conditioning pipes to compressor and move pipes aside.
  3. Remove and discard ’O’ rings from compressor.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.
