Rover 600 Repair Manual Supplement (1993-1999)02 · Engine - L Series
02 · Engine

Models fitted with air conditioning (page 2 of 2)

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Repairs
Engine - L SeriesModels fitted with air conditioning · page 2 of 2
  1. Loosen clip and disconnect coolant hose from coolant pump.
  2. Loosen clip and disconnect coolant hose from engine oil cooler inlet pipe.
  3. Loosen clip and disconnect coolant hose from engine coolant rail.
  4. Remove coolant hose assembly
  5. Loosen clip and disconnect coolant hose from radiator outlet pipe.
  6. Loosen clip and disconnect coolant hose from engine oil cooler outlet pipe.
  7. Remove coolant hose.

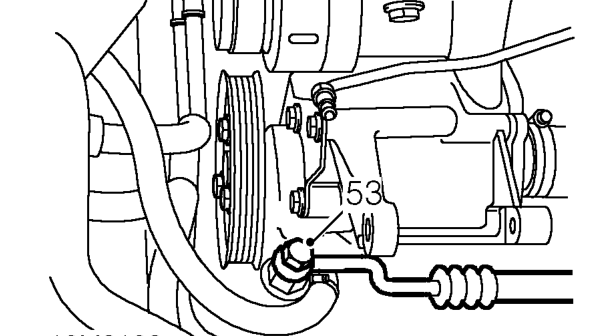

  8. Position drain tray and cloth to absorb fluid spillage.
Position drain tray and cloth to absorb fluid spillage.

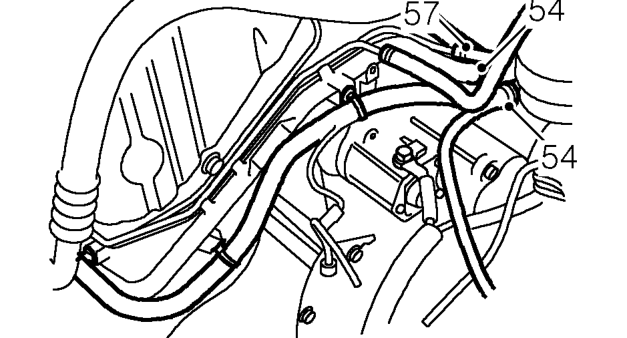

  1. Remove bolt securing banjo to PAS pump collect washers.

CAUTION: Plug the connections.

Remove bolt securing banjo to PAS pump collect washers.
  1. Loosen 2 clips securing heater and expansion tank hoses to coolant rail.
  2. Disconnect hoses and move aside.
  3. Position absorbent cloth to catch any fuel spillage.
  4. Release clip and disconnect fuel return hose from fuel pipe.
  5. Release clip and disconnect fuel filter outlet hose.

CAUTION: Plug the connections.

  1. Release fuel filter from bracket and position aside.
