Rover 600 Repair Manual Supplement (1993-1999)02 · Engine - L Series
02 · Engine

Oil pump (page 2 of 2)

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Repairs
Engine - L SeriesOil pump · page 2 of 2
Diagram

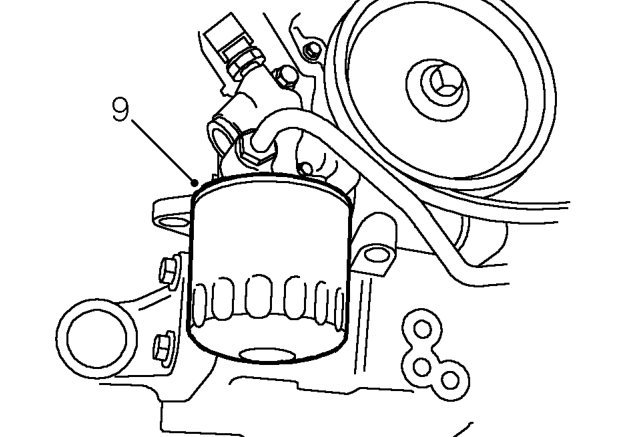

  1. Remove and discard oil filter.
Remove and discard oil filter.

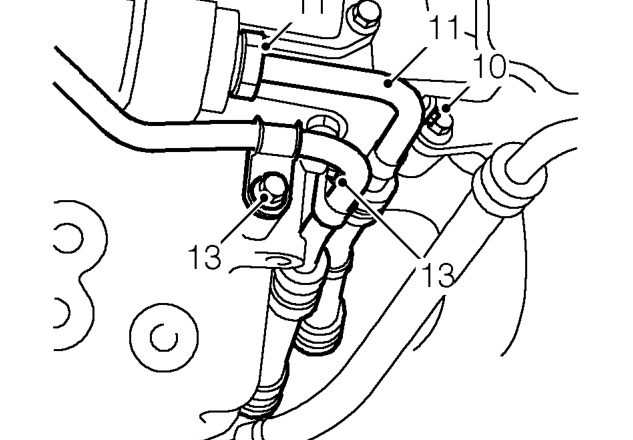

  1. Remove bolt securing oil cooler pipe clip to bracket on coolant pump mounting.
  2. Remove oil cooler pipe union nut from pump and release pipe from pump.
  3. Remove and discard ’O’ ring.
  4. Remove 2 bolts securing oil cooler pipe clips to sump.
Remove 2 bolts securing oil cooler pipe clips to sump.

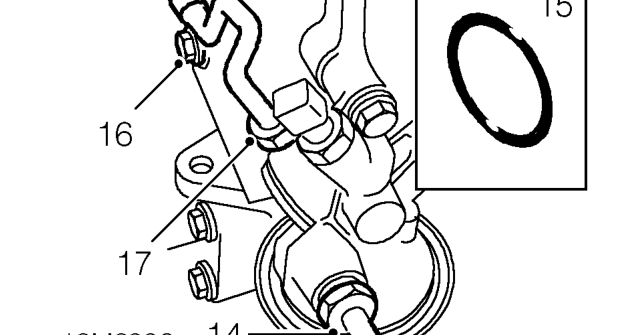

  1. Remove pipe union nut and disconnect pipe from pump.
  2. Remove and discard ’O’ ring.
  3. Remove bolt securing turbo oil feed pipe clip to cylinder block.
  4. Remove union nut and disconnect turbo oil feed pipe from pump.
  5. Remove and discard ’O’ ring.

CAUTION: Plug the connections.

Remove and discard ’O’ ring.

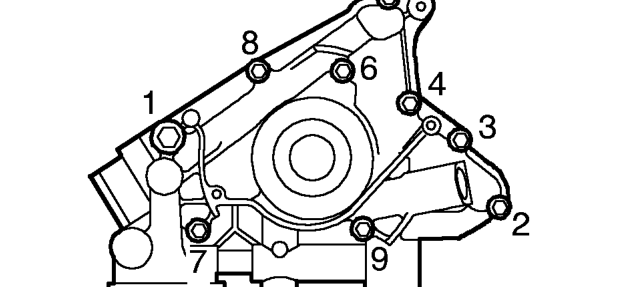

  1. Using sequence shown, remove one M10 and eight M6 bolts securing oil pump to cylinder block. Note position of long bolt at position 9.
