Engine - L SeriesCamshaft rear oil seal · page 6 of 6

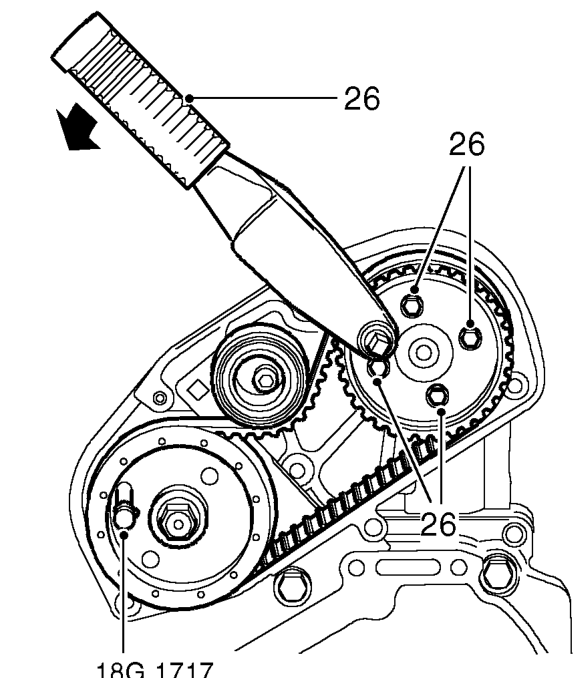

26. Fit torque wrench to square hole in injection pump timing belt camshaft gear, position wrench as shown and apply an anti-clockwise (as viewed from rear of engine) torque loading of 25 Nm to gear. Maintain loading and tighten 4 camshaft gear bolts to 25 Nm.

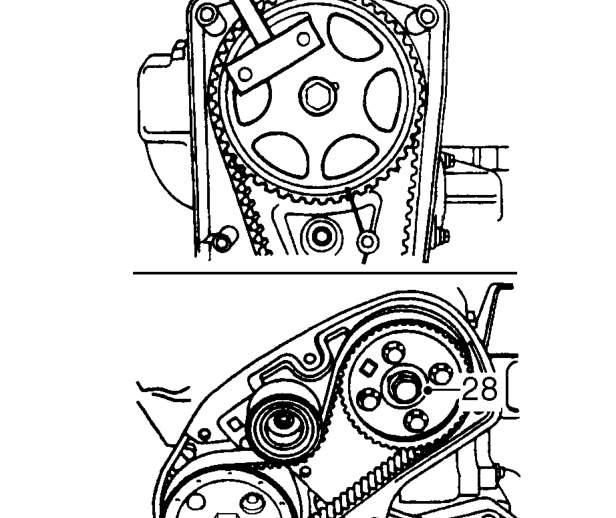

27. Remove timing pin 18G 1523 and locking pin 18G 1717.

28. Restrain camshaft gear using tool 18G 1521 and tighten injection pump timing belt camshaft gear retaining bolt to 20 Nm + 90° .
