Rover 600 Repair Manual Supplement (1993-1999)02 · Engine - L Series
02 · Engine

Engine and gearbox (page 2 of 3)

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Repairs
Engine - L SeriesEngine and gearbox · page 2 of 3
Diagram

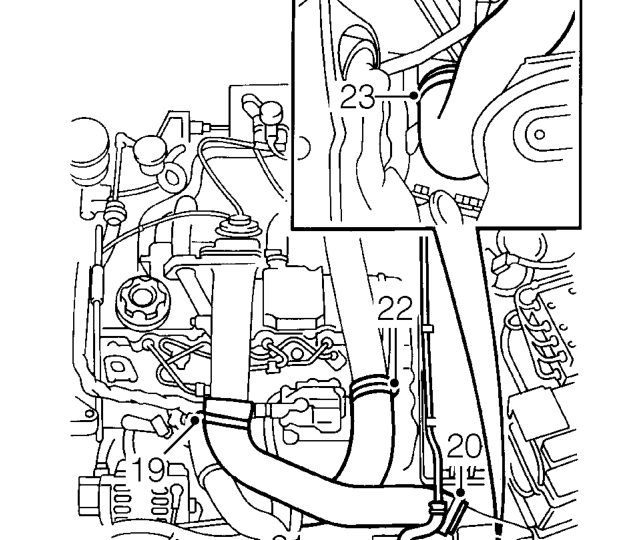

  1. Loosen clip and disconnect air intake hose from inlet manifold.
  2. Loosen clip and remove air intake hose from intercooler.
  3. Loosen clip and disconnect expansion tank return pipe from radiator.
  4. Loosen clip and disconnect hose from turbocharger pipe.
  5. Loosen clip and remove turbocharger hose from intercooler.
Loosen clip and remove turbocharger hose from intercooler.

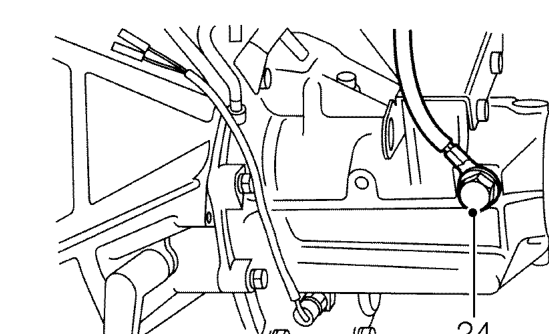

  1. Remove bolt securing earth lead to gearbox.
Remove bolt securing earth lead to gearbox.

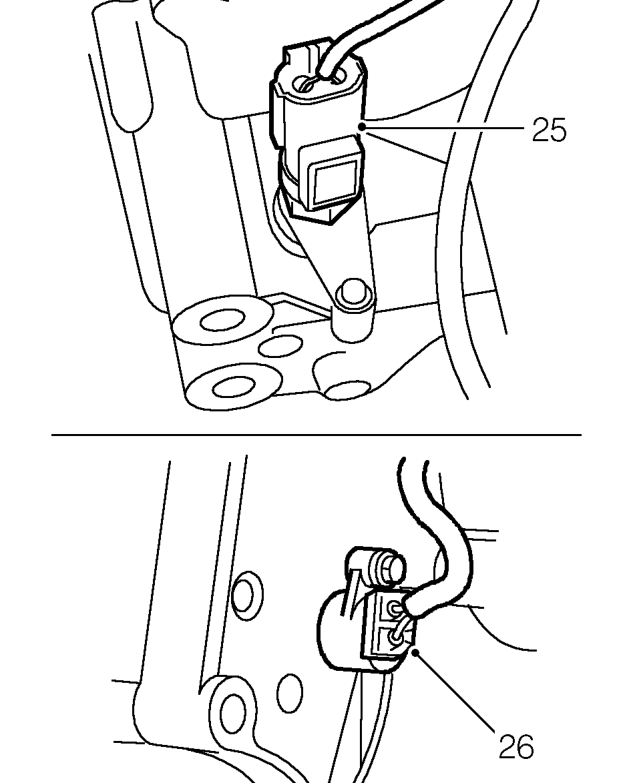

  1. Disconnect multiplug from speed sensor.
  2. Release CKP sensor connector from bracket and disconnect multiplug.
Release CKP sensor connector from bracket and disconnect multiplug.

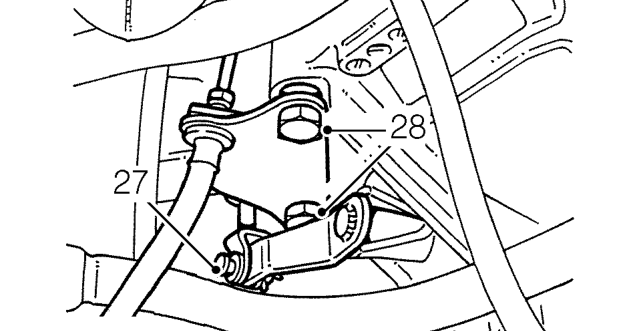

  1. Remove ’R’ clip securing clutch slave cylinder push rod to release lever, remove washer, clevis pin and push rod.
  2. Remove 2 bolts securing slave cylinder mounting bracket to gearbox and position aside.
