Rover 600 Repair Manual Supplement (1993-1999)02 · Engine - L Series
02 · Engine

Engine and gearbox (page 3 of 3)

Make
Rover
Model
600 Repair Manual Supplement
Year
1993–1999
Section
Repairs
Engine - L SeriesEngine and gearbox · page 3 of 3
Diagram

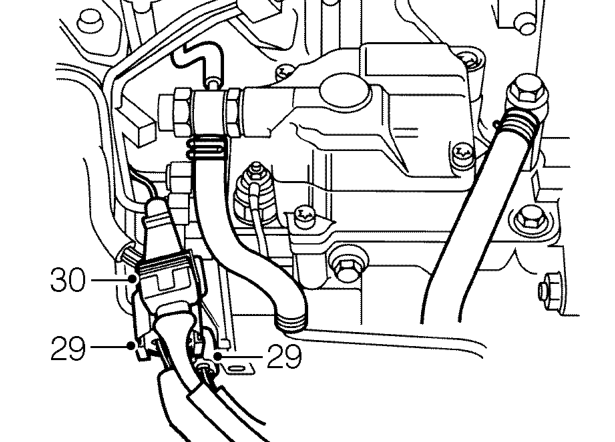

  1. Disconnect 2 fuel injection pump multiplugs.
  2. Disconnect No.1 injector needle lift sensor multiplug.
Disconnect No.1 injector needle lift sensor multiplug.

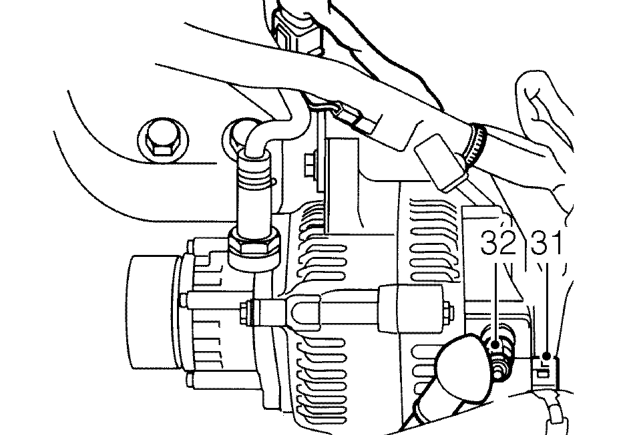

  1. Disconnect alternator multiplug.
  2. Remove nut securing alternator lead.
Remove nut securing alternator lead.

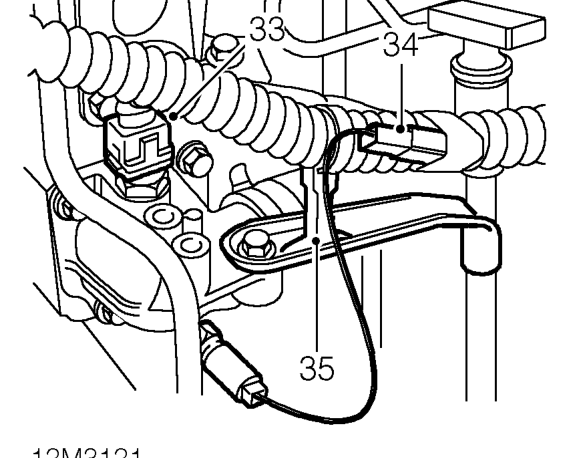

  1. Disconnect coolant temperature sensor multiplug.
  2. Disconnect coolant temperature gauge sensor connector.
  3. Release engine harness clip from dipstick tube bracket.
Release engine harness clip from dipstick tube bracket.

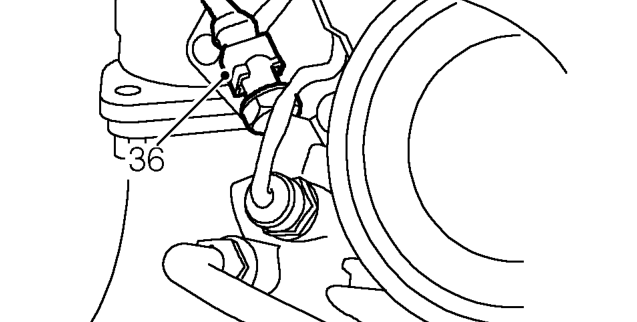

  1. Disconnect oil pressure switch multiplug
