45. Loosen tensioner pulley Allen bolt until tensioner moves easily without tipping.

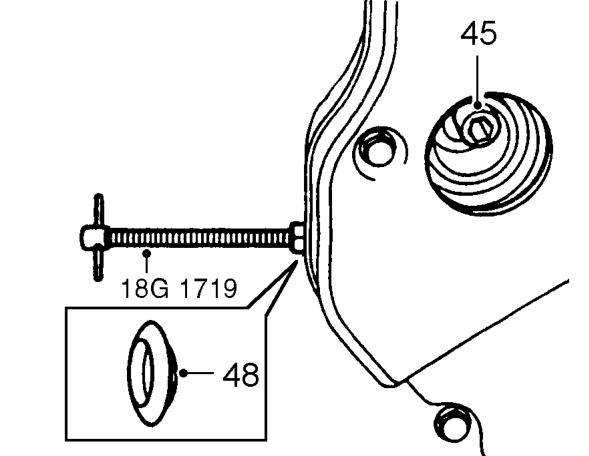

46. Release camshaft timing belt tensioner plunger using tool 18G 1719.
47. Release tool 18G 1719 from camshaft timing belt tensioner and tighten Allen bolt to 55 Nm.

CAUTION: Do not exceed specified torque.

48. Fit access plug to timing belt rear cover.

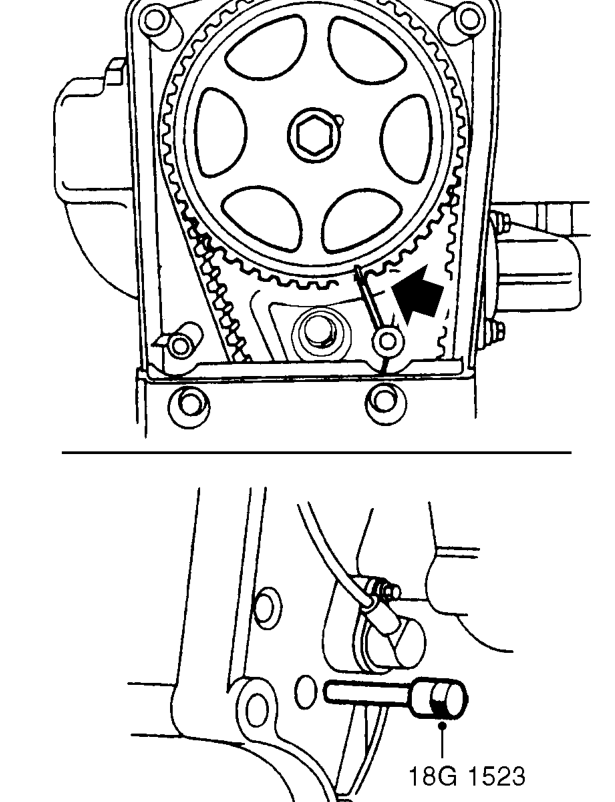

49. Remove timing pin 18G 1523 from flywheel.

50. Using crankshaft pulley bolt, rotate crankshaft 2 turns clockwise and align camshaft gear timing mark with mark on back cover.

CAUTION: Do not use camshaft gear, gear bolt or timing belt to rotate crankshaft.

51. Insert timing pin 18G 1523 into flywheel ensuring that pin is fully inserted in hole.
