Freelander Service Procedures
AUTOMATIC GEARBOX - JATCO
44-20
REPAIRS

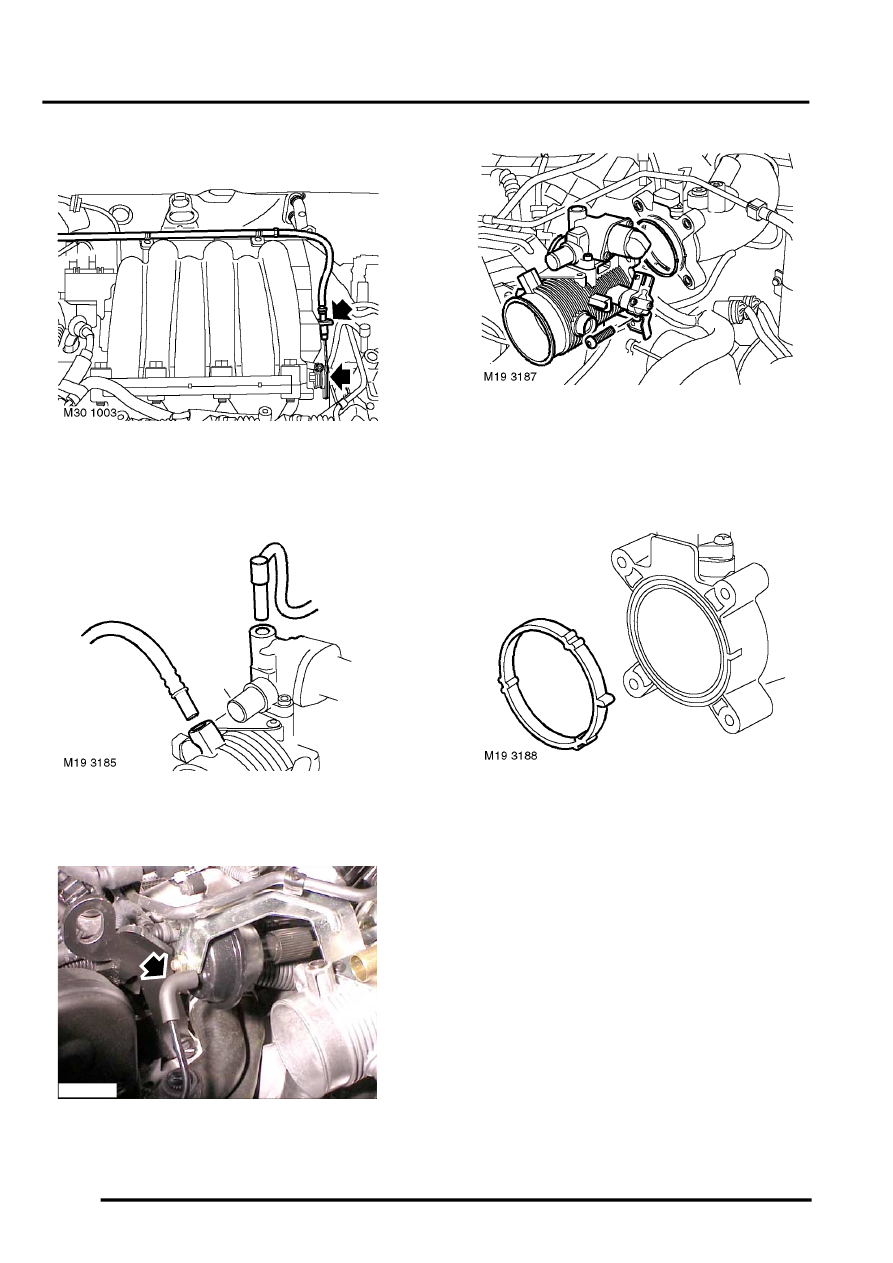

25. Remove nut and bolt, adjacent to CKP sensor,
securing gearbox to engine.
26. Release throttle cable from abutment bracket
and disconnect cable from throttle body cam, if
fitted.
27. Depress collars and release 2 breather pipes
from throttle housing, if fitted.
28. Vehicles with cruise control: Disconnect
vacuum hose from cruise control actuator.
29. Remove 4 Torx screws securing throttle
housing, release throttle housing and position
aside.
Non NAS throttle housing shown.
30. Remove and discard 'O' ring from throttle
housing.
31. Remove starter motor.
M19 3198
