Freelander Service Procedures
ENGINE - K SERIES KV6
12-3-58 REPAIRS
Camshaft timing belt
$% 12.65.18
Remove
1. Disconnect battery earth lead.
2. Remove ancillary drive belt.
REPAIRS, Ancillary drive belt - KV6.
3. Remove RH front road wheel.

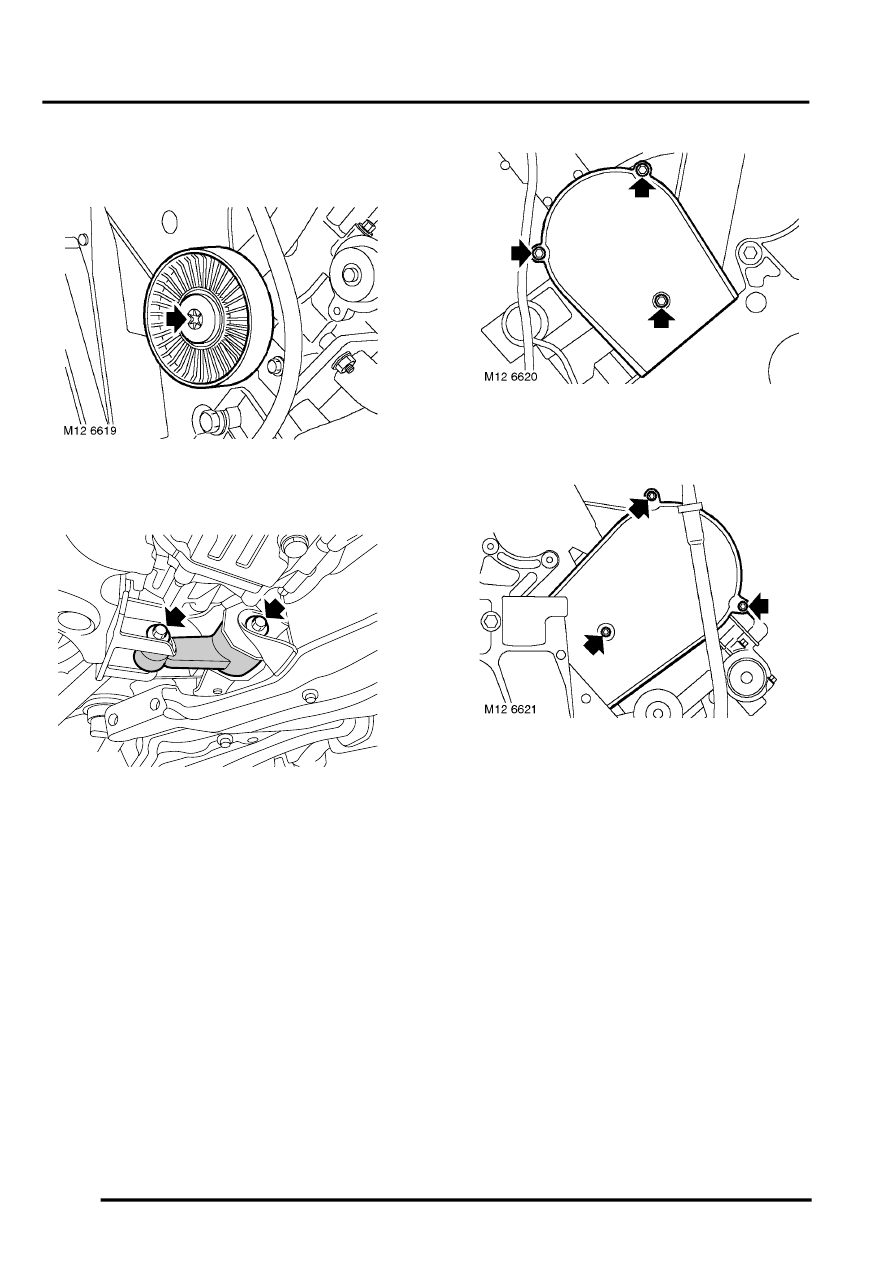

4. Remove 3 bolts securing RH splash shield to
body and remove shield.
5. Remove 3 bolts securing camshaft timing belt
LH rear cover and remove cover.
6. Remove inlet manifold chamber.
- K SERIES KV6, REPAIRS, Seals - inlet
manifold chamber - up to 03MY.
- K SERIES KV6, REPAIRS, Seals - inlet
manifold chamber - from 03MY.
7. Remove 2 bolts securing RH rear timing belt
cover heat shield; remove heat shield.
8. Remove 3 bolts securing RH rear timing belt
cover; remove cover.
9. Using a socket on crankshaft pulley bolt, rotate
crankshaft in a clockwise direction. Align the
engine "SAFE" position, notch on crankshaft
pulley with the "ARROW" on front mounting
plate and the timing marks aligned on the rear
camshaft gears as illustrated.
CAUTION: Do not use camshaft gear bolts
or timing belt to rotate crankshaft.
M12 6614
M12 6694
