Rear door (page 3 of 3)

8. Remove the screws securing the lock control mechanism pivot bracket and the door pull mounting bracket, ease the bracket from the lock barrel stem and remove from the door.
9. Remove the two screws and withdraw the childproof lock actuator.

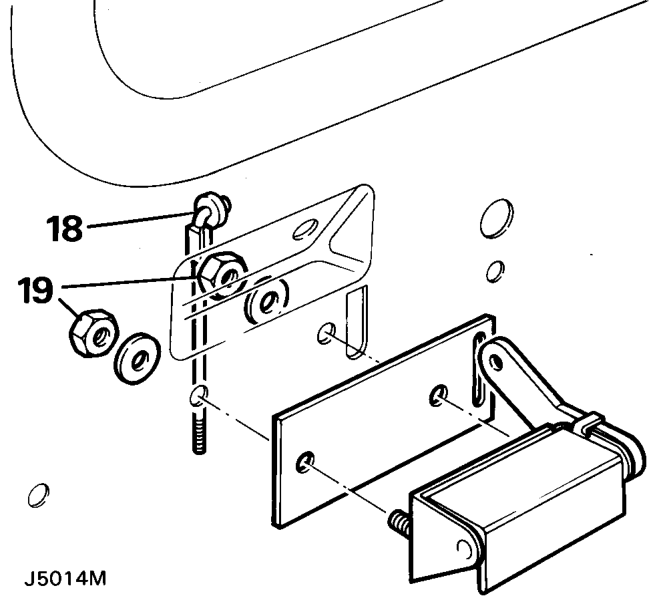

18. Remove the connecting rod from the outer door
19. Remove the two nuts and washers securing the

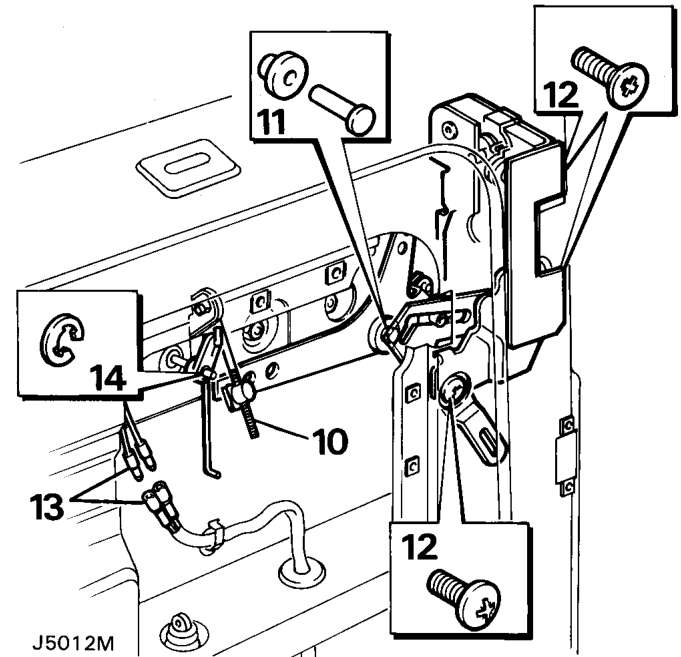

10. Disconnect the adjustable lock rod from the outer ’Y’ lever.
11. Remove the centre pin from the outer ’Y’ lever pivot and release the pivot from the door.
12. Remove the three lock securing screws and manoeuvre the lock and ’Y’ lever out of the door panels.
13. Disconnect the number plate light leads from the door harness.
14. Remove the ’E’ clip securing the fulcrum to the barrel stem and withdraw the fulcrum and lock rod.

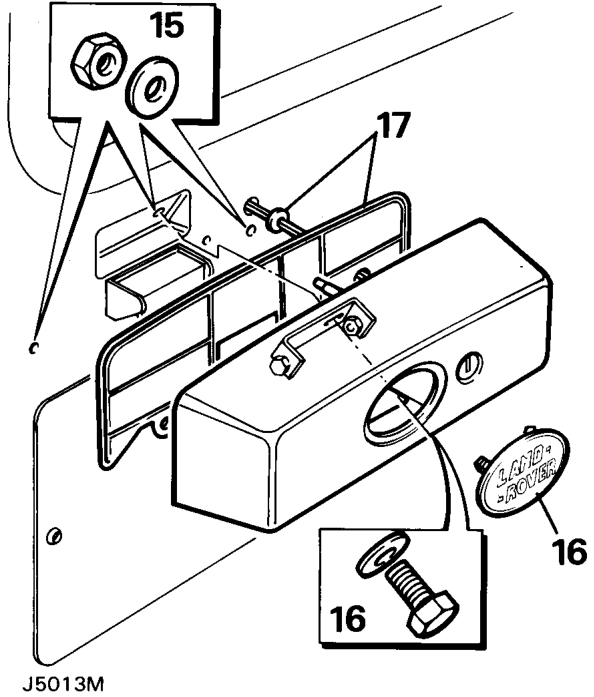

15. From inside the door panel remove the nuts and washers securing the lock barrel and number plate light housing.
16. Remove the logo from the housing and working through the logo aperture, remove the single bolt securing the housing.
17. Partially withdraw the housing and its rubber seal from the door, displace the rubber grommet from the door panel, withdraw the number plate light leads and complete the removal of the housing and seal from the door.

handle lever.

outer handle from inside the door panels and detach the handle and seal.
