Freelander Service Procedures
ENGINE - K SERIES KV6
12-3-14 REPAIRS

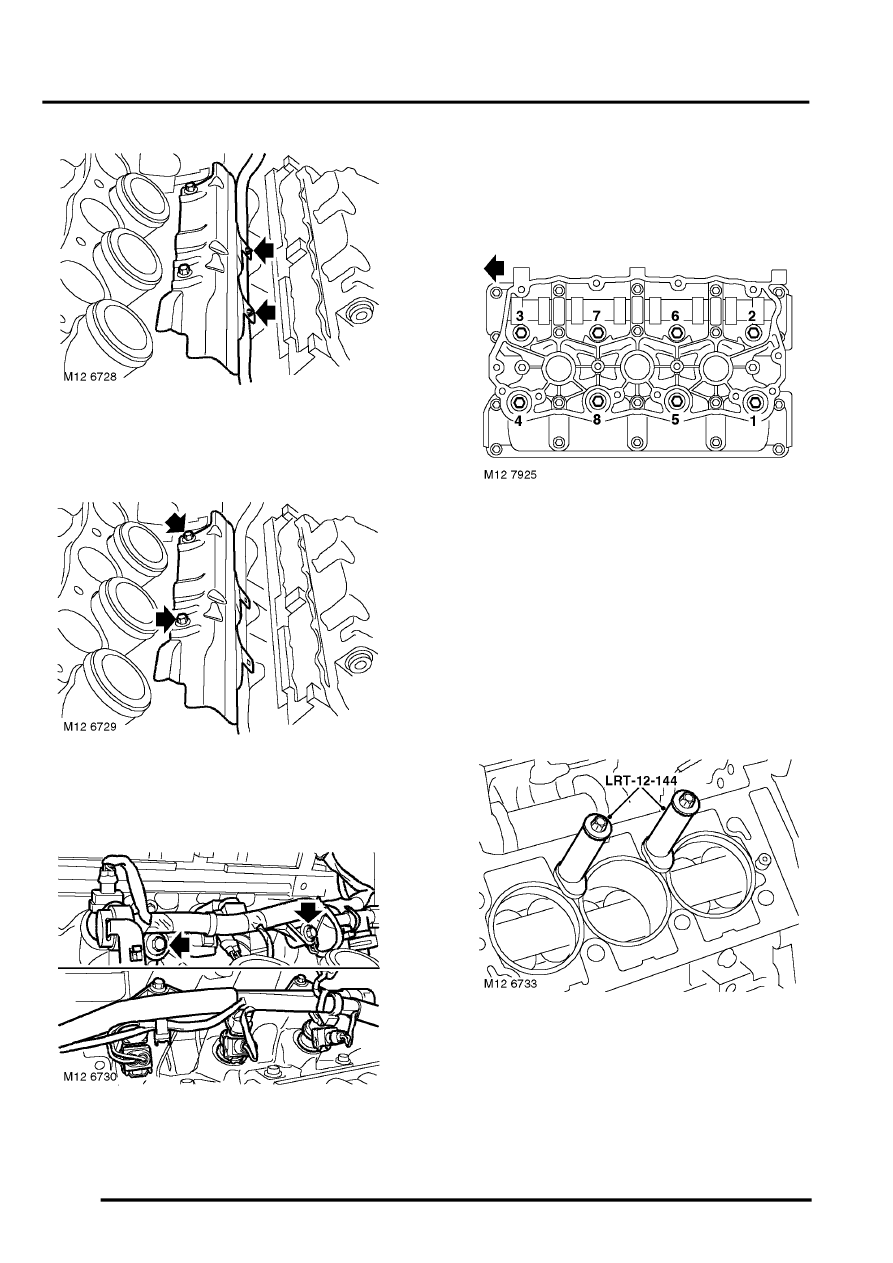

12. Disconnect clips securing RH injector harness
to injector protection cover - if fitted or from
bosses on fuel rail.
13. Remove 2 bolts securing protection cover - if
fitted and fuel rail to RH inlet manifold, remove
cover.
14. Remove 2 bolts securing fuel rail to LH inlet
manifold.
15. Release injectors from manifolds and carefully
lay fuel rail and injectors aside.
CAUTION: Always fit plugs to open
connections to prevent contamination.
16. Using sequence shown, progressively loosen
and remove 8 cylinder head bolts.
17. With assistance, remove cylinder head
assembly.
CAUTION: Support both ends of cylinder
head on blocks of wood.
18. Remove and discard cylinder head gasket.
Do not rotate crankshaft whilst RH cylinder
head is fitted.
19. Fit cylinder liner clamps LRT-12-144 and
secure with cylinder head bolts.
CAUTION: Ensure that feet of clamps do not
protrude over bores.
