Engine - L SeriesAll models · page 3 of 3

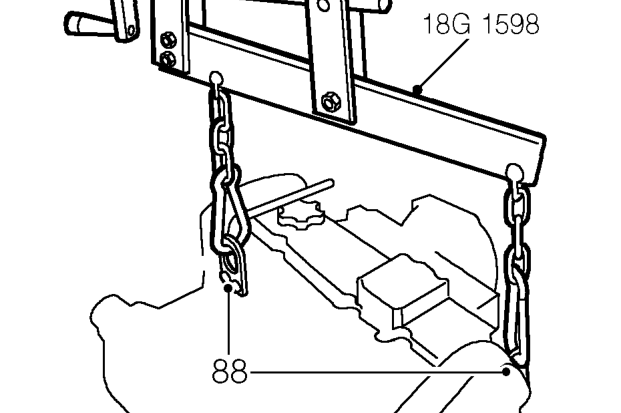

88. Attach engine lifting tool 18G 1598 to engine lifting eyes and connect lifting tool to hoist.
89. Raise hoist until lifting tool chains are taut.

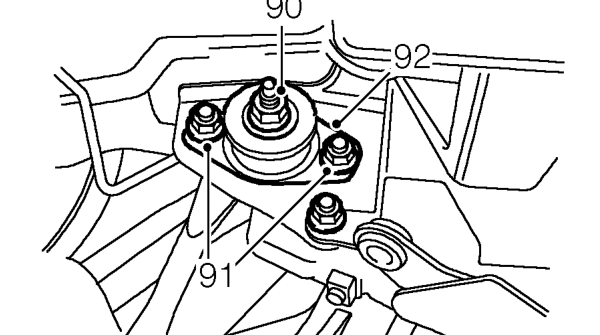

90. Remove nut securing engine LH mounting to gearbox bracket.
91. Remove 2 nuts securing engine LH mounting to bracket.
92. Remove engine LH mounting.

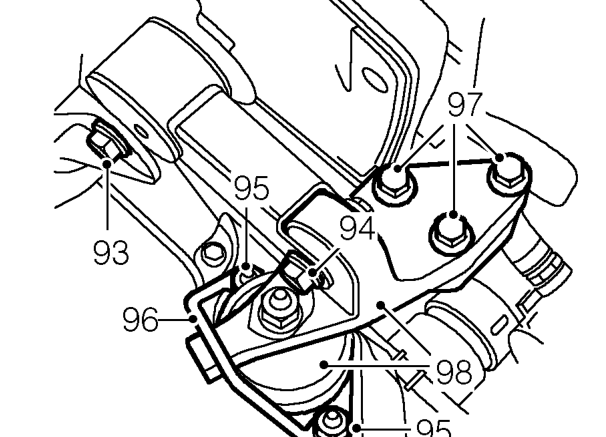

93. Remove bolt securing engine RH mounting tie to body bracket.
94. Loosen bolt securing engine RH mounting to tie bar.
95. Remove 2 nuts securing engine RH mounting restraint bar.
96. Remove mounting restraint bar.
97. Remove 3 bolts securing engine RH mounting to engine.
98. Remove engine RH mounting assembly.
99. Remove engine assembly from vehicle.
