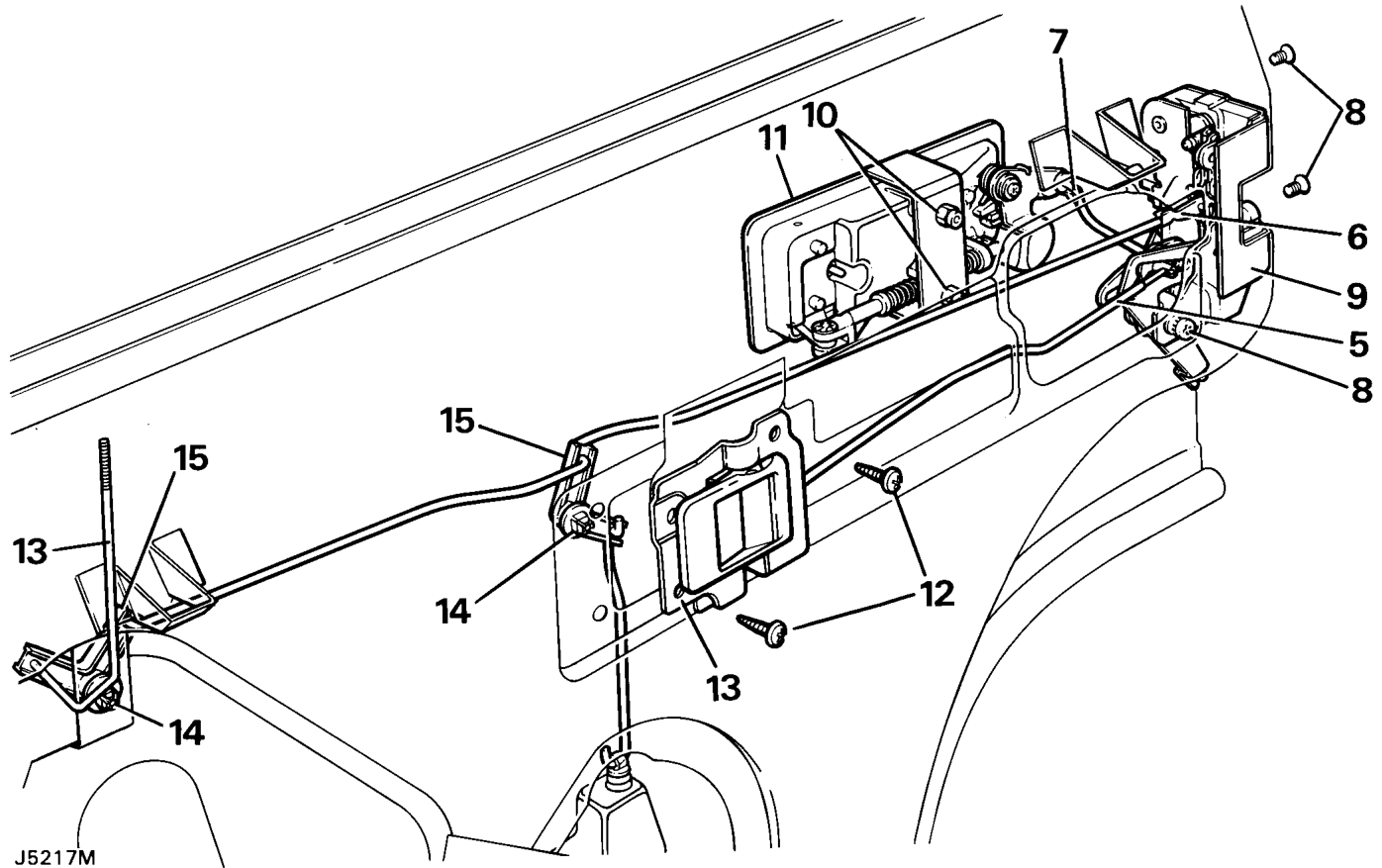

REAR SIDE DOOR LOCK, INSIDE AND OUTSIDE 10. Remove the two nuts, shakeproof washers and RELEASE HANDLES

Service repair no - 76.37.13/32

11. Carefully detach the handle from the outer door

Remove

12. Remove the two screws and plain washers
1. Ensure that the window is in the fully closed position.
2. Disconnect battery negative lead.
3. Remove the interior trim panel from the door. 13. Disconnect the sill button connecting rod from See this section.
4. Remove the plastic vapour barrier sheet.
5. Disconnect the inside release handle control rod by pulling it from its location in the door lock. Sill locking bellcrank
6. Disconnect the sill locking control rod from the lock by releasing the metal clip. 14. Using a small screwdriver, or length of 3.175 mm
7. Disconnect the outside release handle control rod by pulling it out of the plastic ferrule.
8. Remove the two countersunk screws from the door edge and the single screw and shakeproof 15. Release the bellcranks from the inner door panel washer from the inner door panel. Retrieve any spacing washers which may be fitted between 16. Withdraw the bellcranks from inside the door the inner door panel and lock.
9. Withdraw the lock through the upper rear opening in the inner door panel.

NOTE: If necessary the following items can be removed.

retaining bracket securing the outer release handle which are accessible through the upper rear cut-out on the inner door panel.

panel.

securing the inside release handle to the inner door panel and withdraw the handle complete with connecting rod.

the bellcrank and withdraw the rod complete with sill button.

(1/8 in) diameter rod, press the plastic locking pins through the respective square inserts in the inner door panel.

and unhook the respective connecting rods.

panels.

• NOTE: When refitting the bellcranks the
• locking pins are entered into the square
• insert from outside and pressed in flush.
