Rear side door - trim panel (page 3 of 3)

ADJUSTMENT-REAR SIDE DOOR LOCK AND REAR SIDE DOOR GLASS AND REGULATOR HANDLE Service repair no - 76.31.45 Service repair no - 76.37.47 Remove Outside door release handle to lock

1. Disconnect the short off-set connecting rod at the rear of the outer release handle, rotate the rod clockwise or counter clockwise to shorten or extend the operating length of the rod as required.

• NOTE: Door release should occur before
• the total handle movement is achieved to
• provide a small overthrow movement.

1. Ensure that the window is in the fully closed position and secure it with adhesive tape over the top of the door to prevent the glass from dropping down.
2. Disconnect battery negative lead.
3. Remove the door trim panel. See this section.
4. Remove the plastic vapour barrier.
5. Where applicable remove the door actuator and window lift motor. See ELECTRICAL, Repair. See ELECTRICAL, Repair.

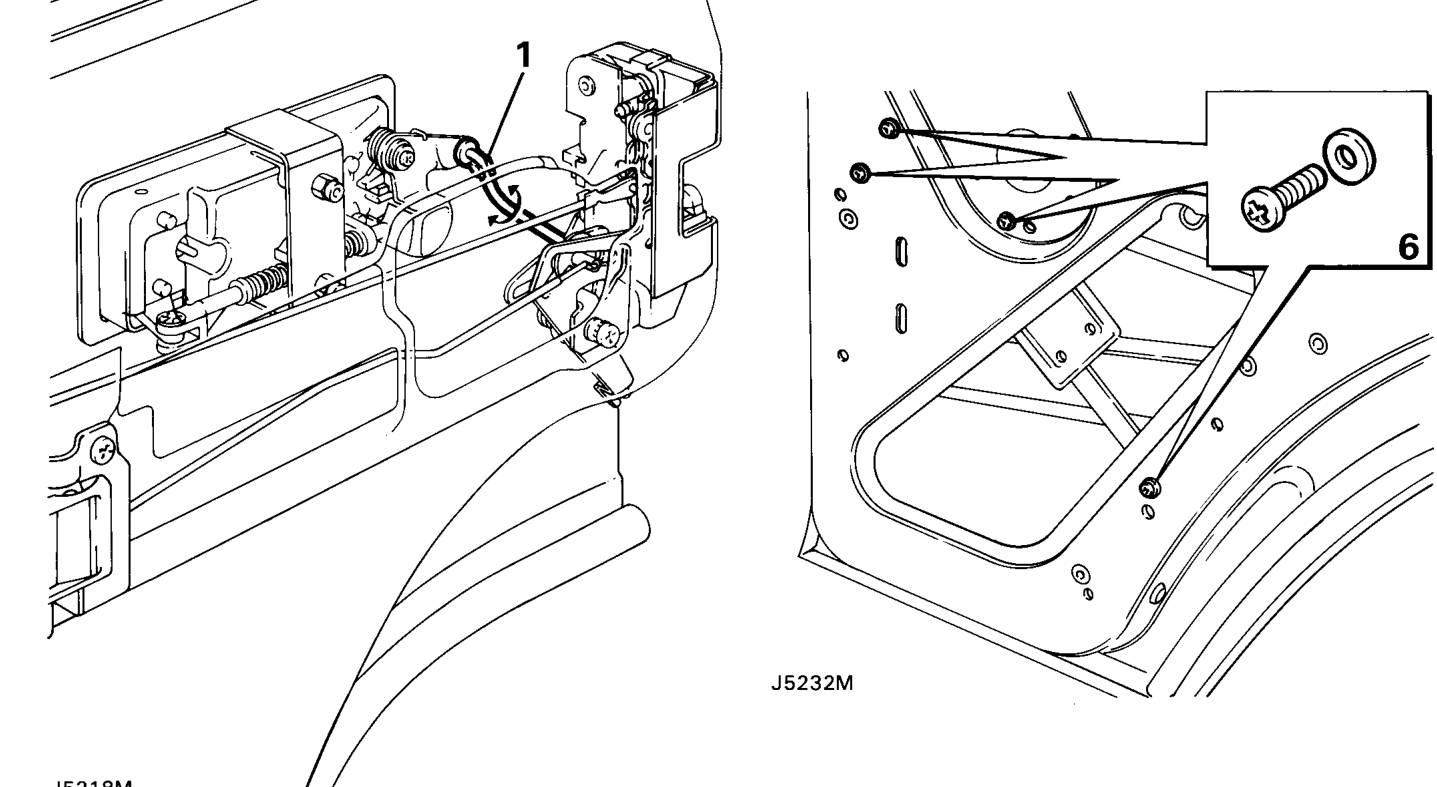

6. Remove the four window regulator securing screws and shakeproof washers from the inner door panel.

10. Remove the two bolts, spring and plain washers
7. Carefully disengage the lifting arm stud from the glass lifting channel and remove the window regulator from the lower opening in the inner door panel.
8. Remove the waist rail seal from the top of the door panel.
9. Remove the single bolt, spring and plain washers from inside the door, securing the bottom of the short glass run channel.

from the hinge face of the door.
