ENGINE MOUNTING - FRONT

Service repair no - 12.45.02

Remove

  1. Disconnect battery earth lead.
  2. Remove underbelly panel. See BODY, Repairs.
  3. Position jack under gearbox and support weight of power unit.

CAUTION: Use a block of wood or hard rubber pad to protect sump.

Engine mounting - front – Position jack under gearbox and support weight of power unit.

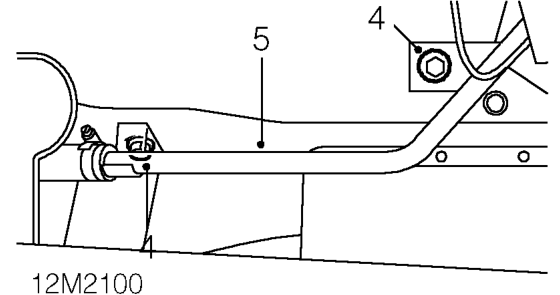

  1. Remove 2 bolts securing heater outlet pipe to front cross-member.
  2. Position heater outlet pipe rearwards.
  3. Release top hose from front clip.
Engine mounting - front – Release top hose from front clip.

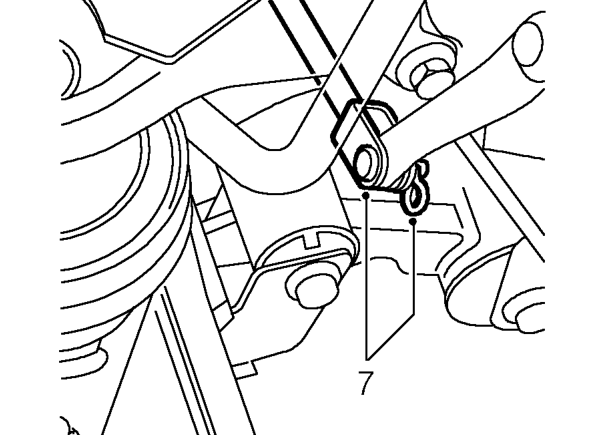

  1. Remove ’R’ clip and clevis pin securing push rod to clutch lever.
Engine mounting - front – Remove ’R’ clip and clevis pin securing push rod to clutch lever.

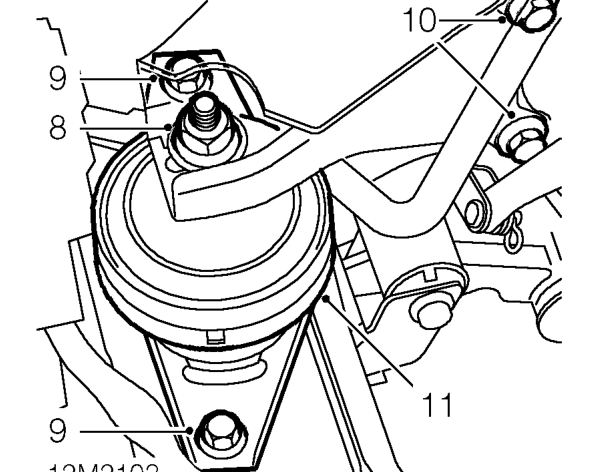

  1. Remove nut securing engine mounting to engine bracket.
  2. Remove 2 bolts securing engine mounting to front cross-member.
  3. Remove 2 bolts securing mounting bracket to bell housing.
  4. Release engine mounting from bracket and remove mounting.
