Engine - KV6Air conditioning
Diagram
  1. Remove 3 bolts securing air cleaner bracket and remove bracket.
Remove 3 bolts securing air cleaner bracket and remove bracket.

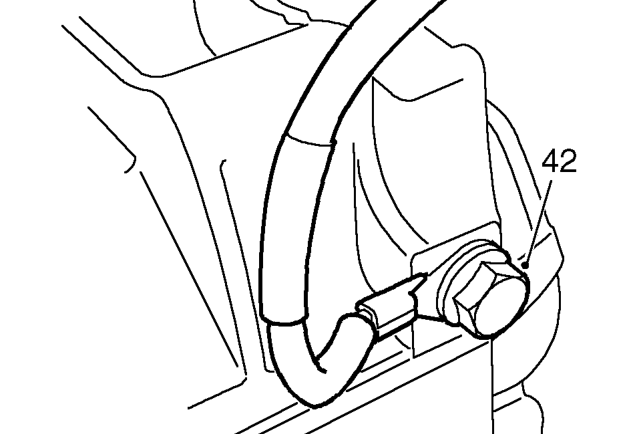

  1. Remove bolt securing earth lead to gearbox.
  2. Remove road wheel(s).
  3. Drain gearbox oil. See MANUAL GEARBOX - ’PG1’, Adjustments.
  4. Drain engine oil. See Adjustments.

Air conditioning

Air conditioning – Drain engine oil. See Adjustments.
  1. Remove 3 bolts securing RH under wing splash shield. Collect spacer and remove shield.
Air conditioning – Remove 3 bolts securing RH under wing splash shield. Collect spacer and remove shield.

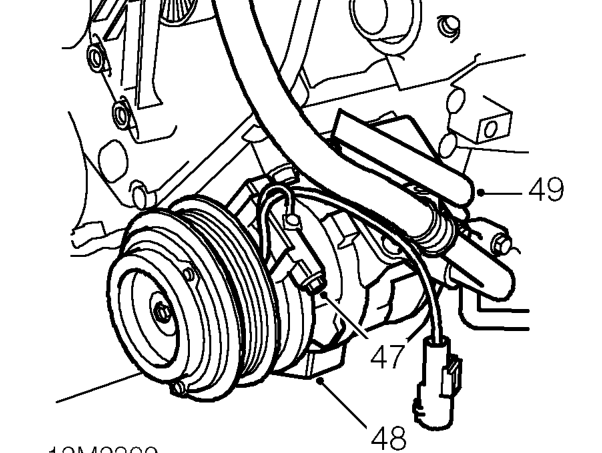

  1. Remove 4 bolts securing compressor to mounting bracket.
  2. Release compressor and lay aside.
  3. Remove compressor heatshield.
