Engine mounting - rear

Refit

1. Engage RH mounting in body bracket and position mounting on front beam.
2. Fit through bolt to secure mounting to body bracket, engage special nut around peg, do not tighten.
3. Fit bolts securing mounting to engine bracket, tighten to 75 Nm.
4. Tighten through bolt to 45 Nm.
5. Remove support jack.

ENGINE MOUNTING - REAR

Service repair no - 12.45.08

Remove

1. Disconnect battery earth lead.

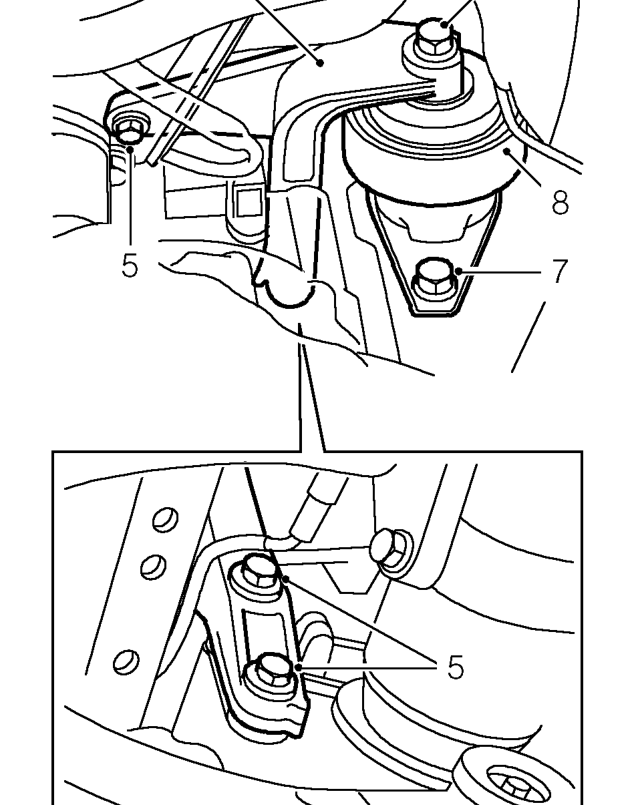

2. Raise front of vehicle.

WARNING: Support on safety stands.

3. Using extension and universal, remove locknut from top of engine mounting.
4. Position jack under gearbox and support weight of power unit.
5. Remove bolt securing engine mounting bracket to engine flange and 2 bolts to differential housing.
6. Remove engine mounting bracket.
7. Use long extension from above, loosen 2 screws securing engine mounting to rear cross-member and remove screws.
8. Remove engine mounting.
