Inlet camshaft front oil seal - RH bank

Refit

CAUTION: Front and rear oil seals are not interchangeable. Ensure outer edge of new oil seal and its mating face are clean and dry.

1. Clean oil seal recess and camshaft.

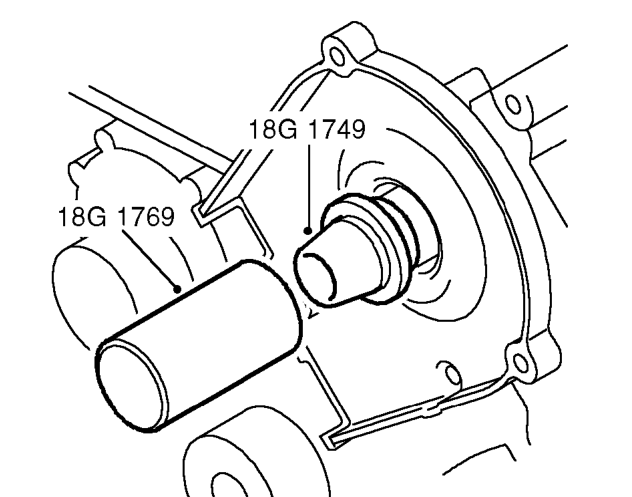

2. Lubricate inner lip of new seal with clean engine oil.

3. Ensure oil seal protector sleeve, tool 18G 1749 is clean. Fit sleeve to camshaft.
4. Position oil seal and using tool 18G 1769 drift seal into position.
5. Remove tool 18G 1749.
6. Clean camshaft gear and mating face.
7. Fit camshaft gear and hub to camshaft.
8. Fit NEW bolt and tighten sufficiently to allow gear to rotate without tipping.
9. Fit camshaft timing belt. See this section.

INLET CAMSHAFT FRONT OIL SEAL - RH BANK

Service repair no - 12.13.41

Refer to camshaft front oil seal - LH bank. See this section.
